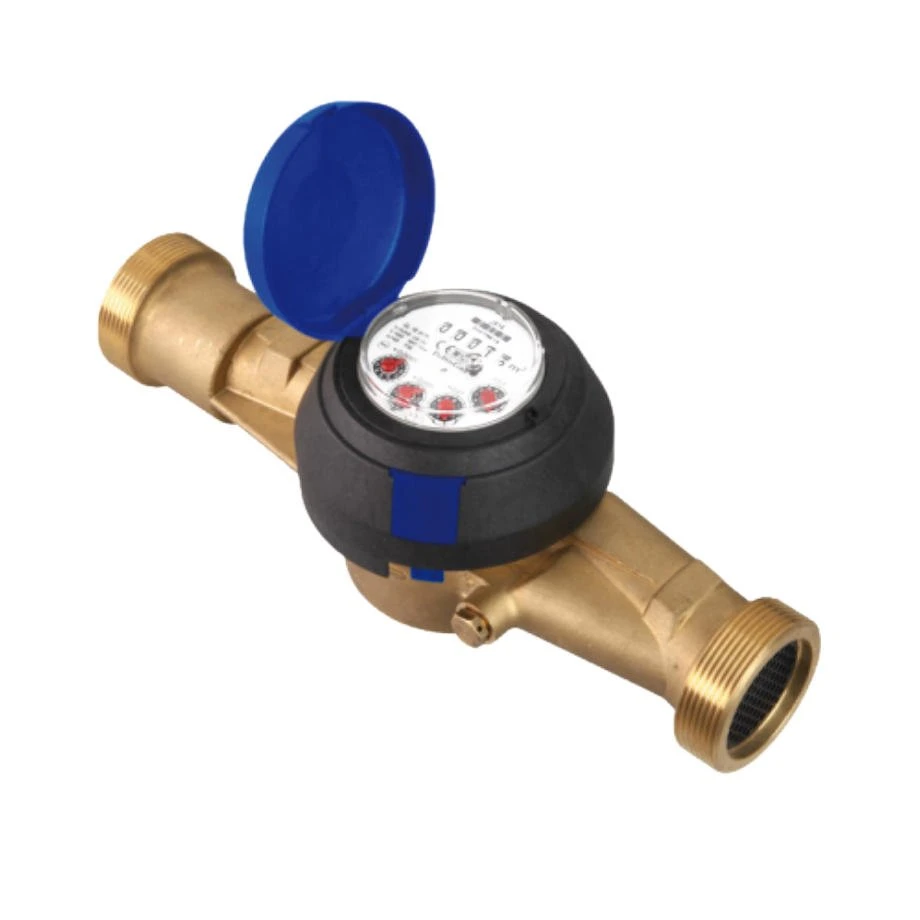

Water Meter WRAS 1 1/2’with 1:10 Pulse Reader

Water Meter WRAS 1 1/2″‘ with 1:10 Pulse Reader

The 1 1/2″ WRAS Water Meter is for measuring the flow and volume of water with a temperature up to 30 ºC on a maximum working pressure up to 16 bar. It is suitable for installation in the horizontal pipelines with the counter directed upwards and in vertical pipelines with the counter directed sidewards. The water meters are equipped with a low eight-barrel counter (IP65), antimagnetic protection SN+ and brass housing.

– Resistant to strong external magnetic fields
– Double-sided rotor bearing
– Readings reliability, fulfils the newest metrological requirements of MID
– Protection which limits the result of water freezing
– The outlet port on the water meter housing is suitable for the optional installation of a return valve
– Clear visual display of the water meter counter
– Hermetic counter is resistant to steaming
– Rotation angle of more the 360º and protection against mechanical tampering –  Pulse reader with reed switch and cable to connect to

• Product Code: ENV
• Diameter: 50mm
• Potable: WRAS Approved
• WRAS: Yes
• WRAS Approved: Yes
