Volume Filter

Volume Filter

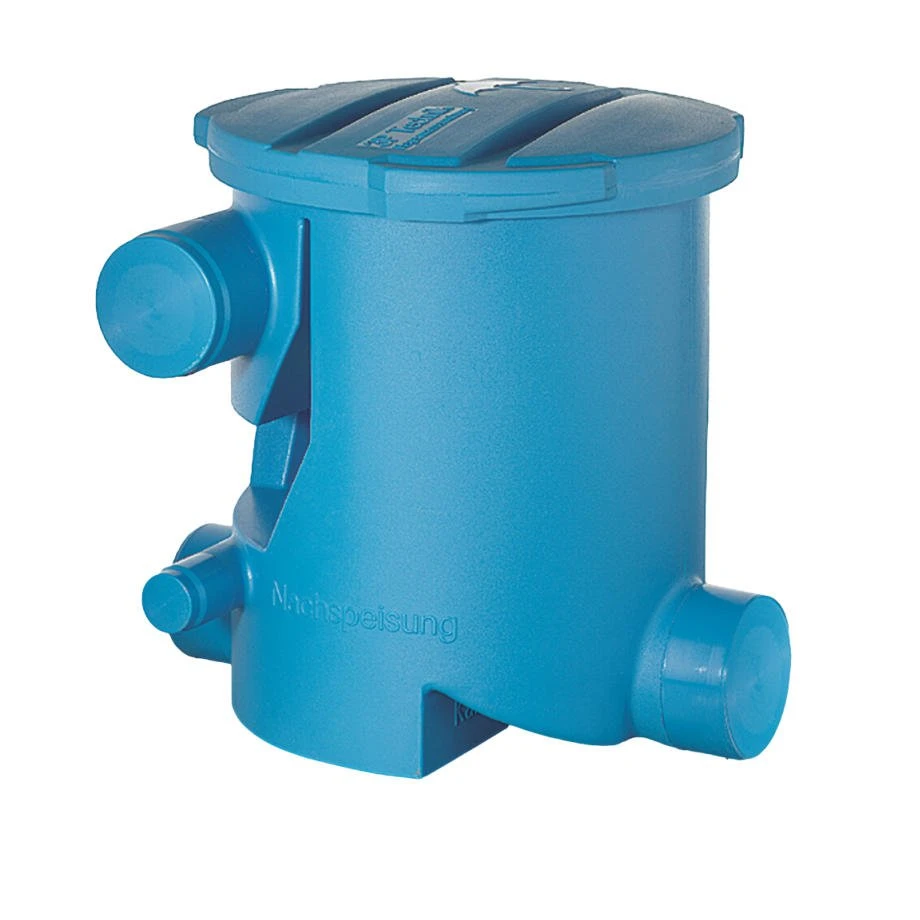

Rainwater filter for installation in rainwater tanks and also in the ground before the tank

Two step cleaning system, therefore high level of filtering efficiency, independent of flow rate. Due to the steep inclination of the filter cartridge the dirt is continuously cleaned away into the sewer. Frost resistant. Self cleaning. Low maintenance intervals, filter insert is easily removed for cleaning and does not have to be changed.

connection capacity according to DIN 1986 for roof areas up to 350m²
Max. flow rate sieve insert 1.5l/sec = 5.4m² cleaned water per hour.
Height difference between inlet and outlet just 300mm.

How it works:

1. As water arrives the level builds up and is equally distributed across the cascade.
2. Pre cleaning through the cascades. Largest dirt particles are led across the primary filter cascades directly to the sewer.
3. Pre filtered water then flows over the secondary filter sieve (mesh size 0,65 mm). Due to the special mesh structure of the sieve, any dirt washes directly into the sewer which means the filter is self cleaning, with very low maintenance.
4. Cleaned water flows to the cistern.
5. Dirt goes to the sewer.



Delivery

All our filters are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: 3P
• Customer Offloading: Customer Offloading
