Twin Control Panel

Twin control panel

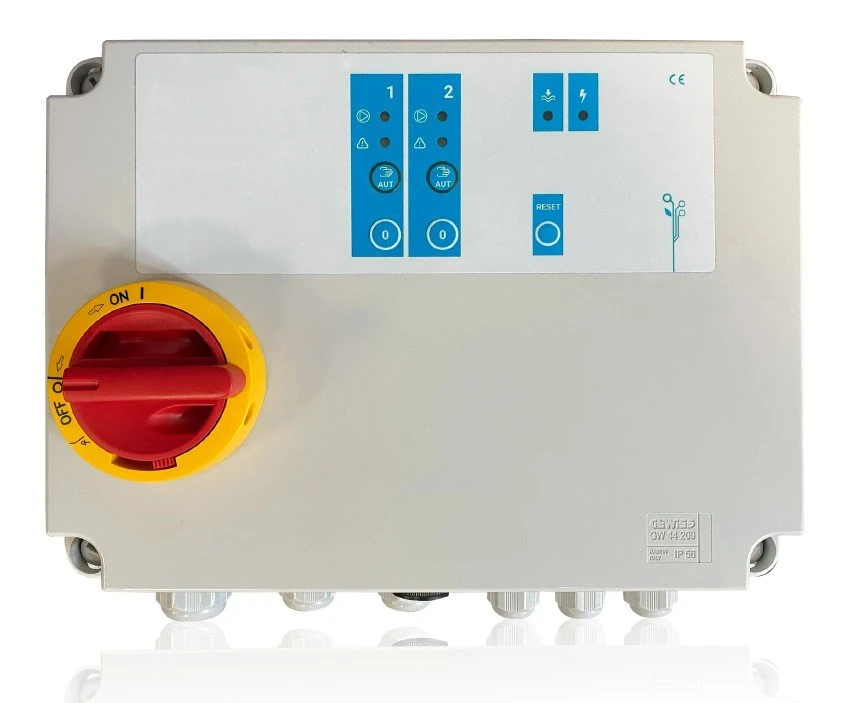

 The DPT Compact control panel has been designed for twin single-phase or three-phase pumps up to 12A, with a selectable 230Vac or 400Vac power supply. By means of a built-in relay, it allows the manual adjustment of maximum intensity for the protection of the pump against overload, as well as protection for lack of phase (three-phase pumps), anti-seizure system, level control by means of floats, temperature protection of the pump by Klixon input (stop due to excessive heating), high level alarm siren, high level independent voltage-free contact alarm output and general alarm.

The panel has indicator lights (supply voltage to the panel, pump running, pump failure alarm, high level alarm), as well as buttons for the start and stop of the pump and a reset button that allows the unit to be reset after an overload alarm. It has a load cut-off switch for forced stopping that stops the motor and does not allow it to start under any circumstances.

The unit offers two voltage-free contacts, one for signalling or activating alarms due to thermal jump or high level and another contact for a siren due to high level that is activated at the same time as the siren of the unit itself.


Features

• Single and Three Phase
• Rated From 1 to 12 Amps
• Volt Free Connections
• Integrated High-Level Alarm
• Standard Duty/Changeover
• Duty Assist Configuration
• Pump Fail Alarm
• Isolator Included
• Video Guides and Instructions



Delivery

Our Control panels are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

• Product Code: DPT
• Material: GRP
• Potable: Potable
• Shape: Rectangle
• Tank Use: Above Ground
• WRAS Approved: Yes
