Mainsboost Flomate Pressure Booster Pump – MBF 200-1-15
Suitable for larger properties with multiple bathrooms and outlets, this Mainsboost Flowmate MBF 200-1-15 Booster system fits neatly within a standard 600 mm larder style cupboard.

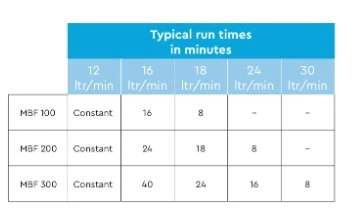

Mainsboost Flomate MBF 200 once connected directly onto the incoming mains, will deliver up to 24 litres/minute flow at 3.2 bar pressure to multiple outlets within the property. The preset cut-in limit of the 200 litre pressure vessel, will deliver 12 litres/minute until demand ends and the pressure vessel recharges.
Features:
- 3-year warranty
- Output flow rate up to 24 litres/minute
- Increases mains water pressure up to 3.2 bar
- 200 litre pressure vessel
- Quiet operation
- WRAS approved product
- Built-in bypass
- Automatic switching
- Dry run protection
- Continuously rated
- Robust brass construction
- Patent protected
| Manufacturer | Stuart Turner |
| Manufacturer’s Warranty | 3 years* |
| Pump Type | Peripheral |
| Pressure Vessel Nominal Size | 200 Litres |
| Pressure Vessel Usable Capacity | 110 Litres |

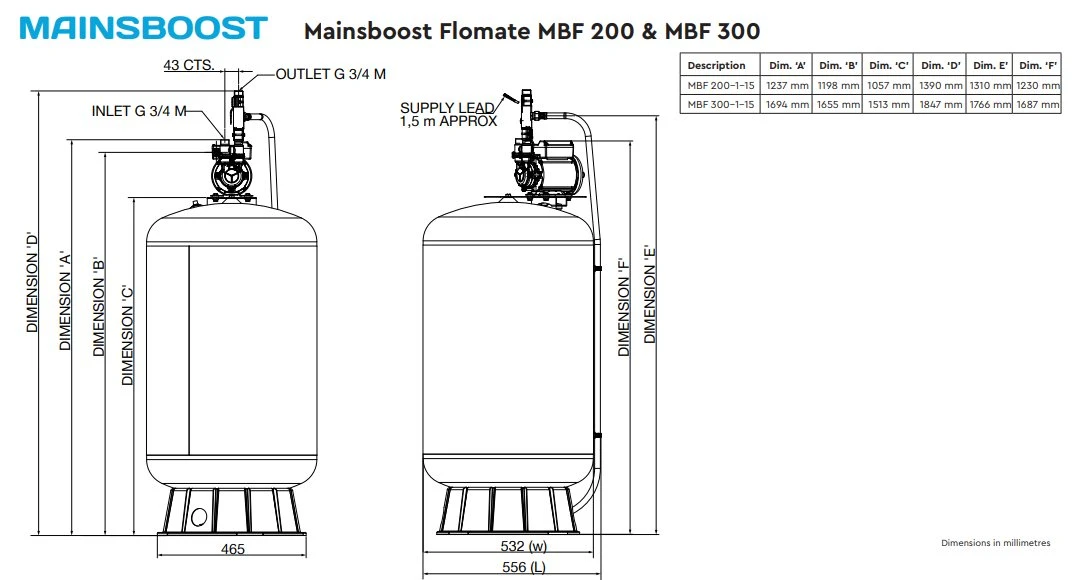

| Dimensions (depth x width) | 532 x 556 mm |
| Weight (including fittings) | 42 kg |
| Power Cable Length | 1.5 m (pre-wired) |
| Max. Head – Closed Valve (metres) | 32 m |
| Max. Flow (Litres per minute) | 18 L/min |
| Max Working Pressure | 450 kPa (4.5 Bar) |
| Max. ambient Air Temp. (continuous) | 40 °C |
| Min. Water Temperature | 4 °C |
| Max. Water Temperature | 35 °C |
| Power Supply | 230 V a.c. / 1 / 50 Hz |
| Motor Type | Peripheral |
| Duty Rating | Continuous (S1) |
Delivery
All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Product Details
- Product Code: STUT
- Brand: Stuart Turner
- Outlet Size: 3/4″ BSP Male
- Potable: Potable
- Twin or Single: Single
