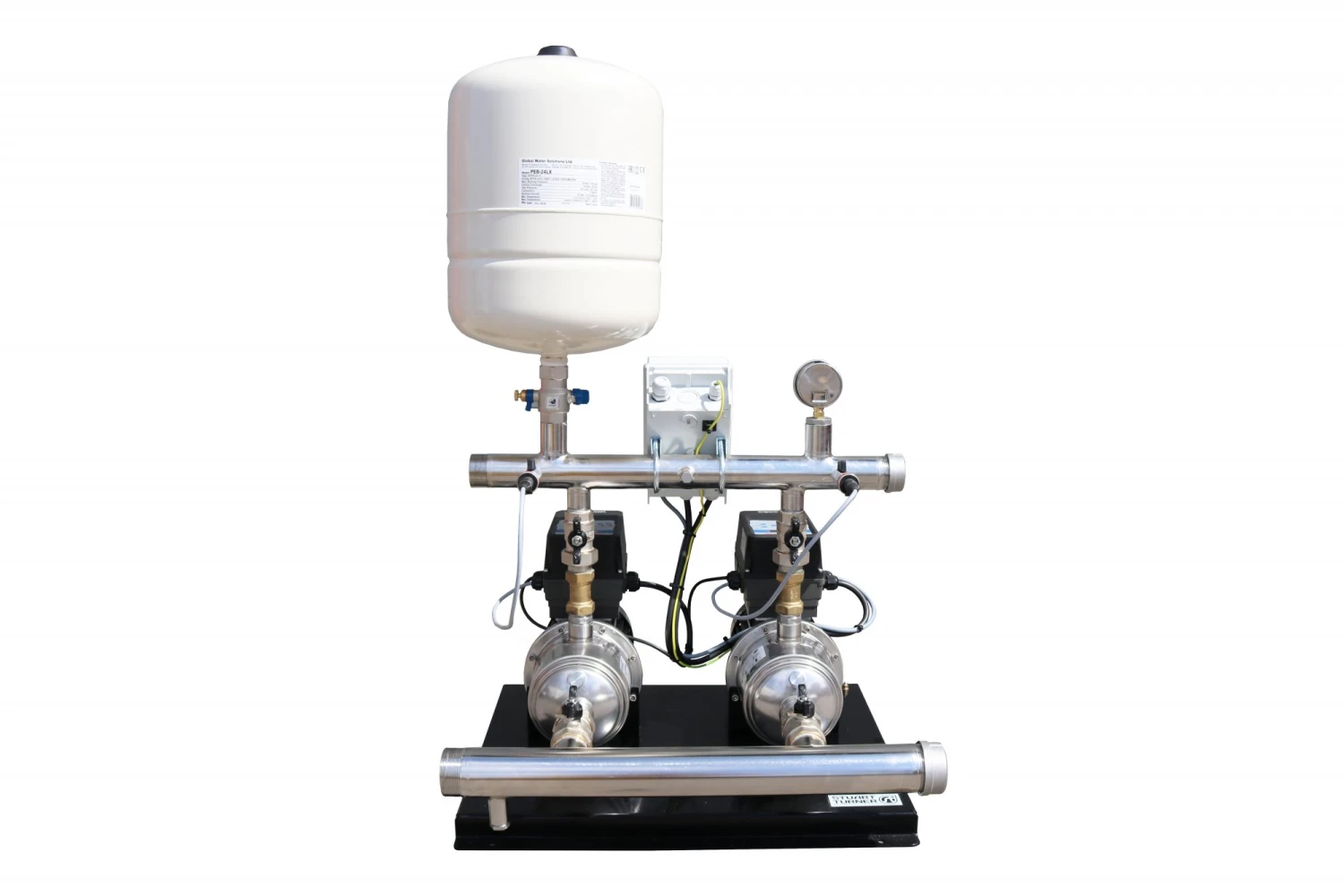

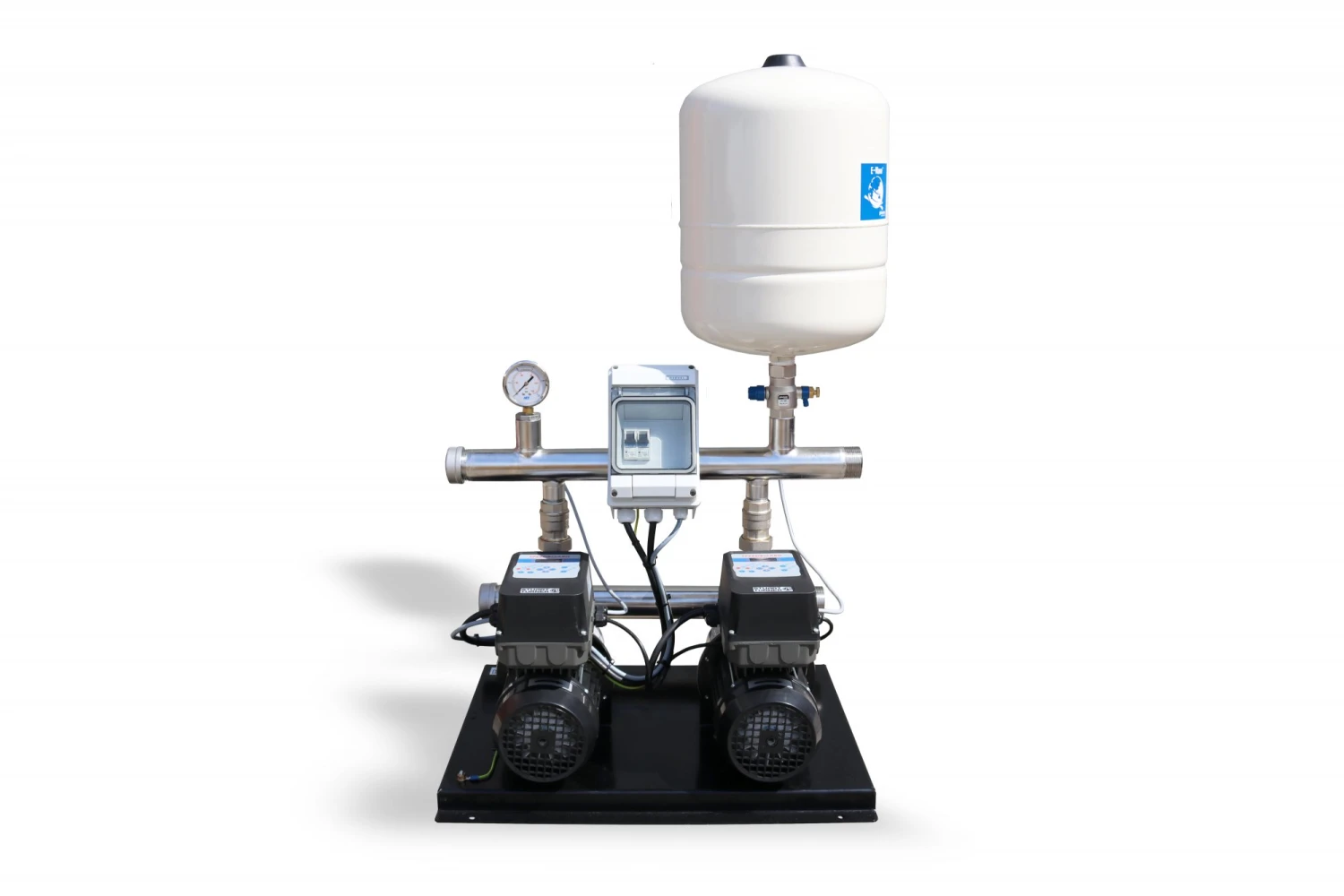

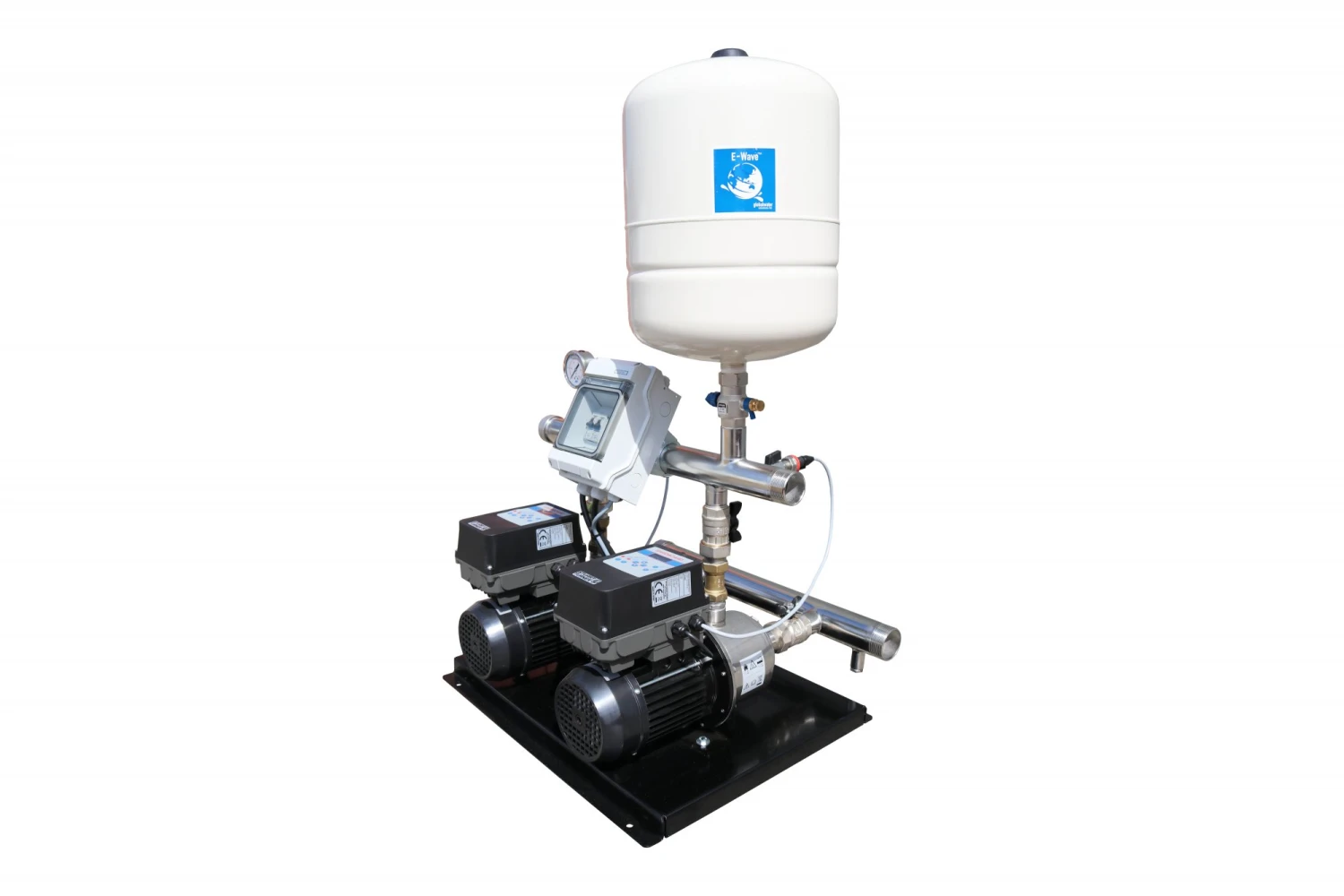

Stuart Turner Aquaboost IBolt Horizontal Twin Booster Pump 0308 2H-CMT/24 100 L/MIN @ 6.2 BAR

Stuart Turner Aquaboost iBolt Horizontal Twin Booster Pump 0308 2H-CMT/24 100 L/MIN @ 6.2 BAR

Aquaboost iBolt range of Twin pump 03 booster sets are capable of delivering flow rates up to 5.0m³/ hour and can produce head pressures of up to 9.0 bar. Not only does the Aquaboost iBolt 03 range feature two horizontal multistage pumps, it is also controlled by an air-cooled variable speed frequency invertors which are mounted directly onto the pump motor.

Ideal for cold water pressure and flow boosting in a range of domestic, commercial and industrail applications.

Key Features for the 03 range

• Flow rates up to 10.0 m3 /h
• Head pressure up to 9.0 bar
• Dry run protection
• 304 stainless steel pumps
• 304/316 stainless steel manifold assembly
• Nickel plated WRAS approved ball valves
• Union fittings on suction and discharge
• WRAS approved 24 litre pressure vessel
• Air cooled inverters
• Glycerine filled pressure gauge
• Powder coated base plate
• BMS volt free contacts



iBolt 0308-2H-CMT/24 Technical Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	2 Years
Pump Type	Centrifugal Multistage
Pump Control	Duty / Standby or Duty / Assist
Inlet	2″
Outlet	1 1/2″

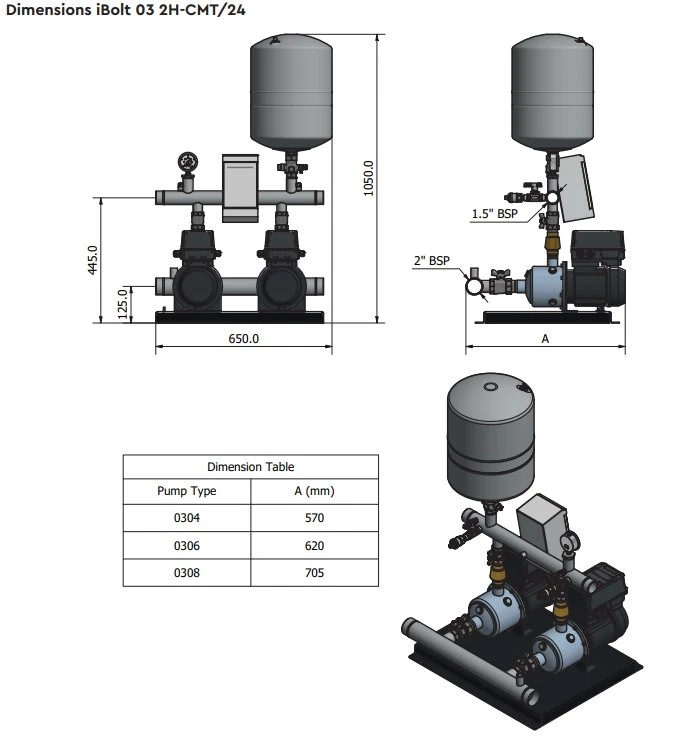

Dimensions (l x w x h)	705 x 650 x 1050 mm
Weight	61 Kg
Typical Noise	< 70 dB (A)
Nominal Head	6.4 bar
Max. Head – Closed Valve (metres)	9.0 bar
Nominal Flow Rate	6.0 m³/ h (3 m³/ h per pump)
Max. Flow (Litres per hour)	10.0m³/ h (5.0 m³/ h per pump)
Pressure Vessel	24 Litres
Max. ambient Air Temp	40 °C
Power Supply	230 V a.c / 1 / 50 Hz
Current Load	10.6 Amps
Motor Type	Induction (current overload sensor)
Duty Rating	Continuous





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.

• Product Code: ST
• Delivery: Free Delivery
• Twin or Single: Twin
• WRAS: WRAS Approved Parts
