Secoh JDK-50 Single Series Blower

SECOH JDK-S-50 SINGLE SERIES BLOWER

The JDK models are a direct replacement of the Secoh EL series of blower. They feature up to 30% less energy consumption, as well as being more compact than the EL series.
This model is to be used in the Biosafe/ CLP6 unit, located on the inside of the unit.

• Long life expectancy

All parts of the motor are combined into one single construction. The combination of a compact and light construction mixed with the uncomplicated mechanism guarantee a long and reliable period of operation.

• High degree of efficiency

The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

• Oil-free operation

The oil-free operation guarantees a smooth air flow and no mess.

• Vibration & Noise Free Air Flow

The Secoh parts are separated with vibration-isolating rubber and has bespoke pump chambers with a muffler integrated in the tank base which provide a pulsation free air flow.

• Robust

The Secoh blowers are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

• Service kits

There are universal service kits available. These are vacuum-packed in aluminium foil for better and longer life/ storage.



APPLICATIONS

• Water treatment
• Ponds & Domestic applications
• Medical and health technology
• Aeration of fuel cell stacks
• Aqua-air-lights and design pillars

Technical:

• Max Flow: 50 Litres per Minute
• Optimal Operating Pressure: 0.20 Bar
• Connector Size: 19mm
• Sound level (at 1.5m): 36dB
• Voltage: 230 VAC

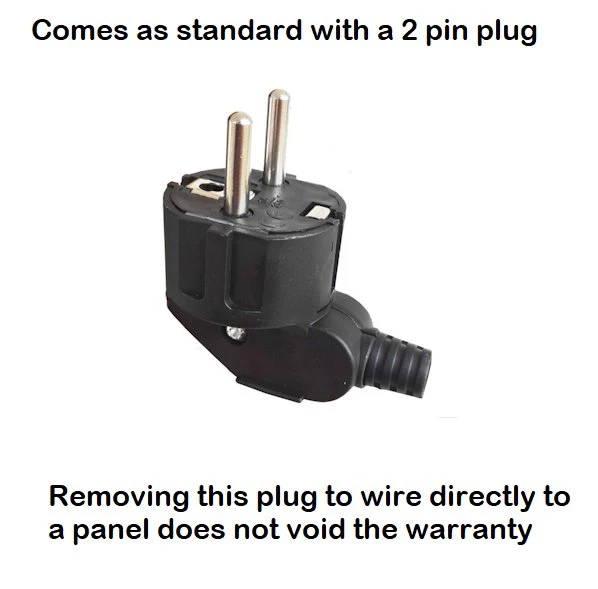

Please note: The Secoh S-series air blowers come with a standard EU plug, these can be removed without effecting warranty





TANK SERVICING

Why does my system need serviced?

• It’s important that your sewage treatment plant or septic tank system is emptied and maintained regularly to continue operating optimally.
• Poorly performing systems can cause serious health hazards as well as local pollution risks.
• Recent Building Regulations (Part H 2010 – BS EN 12566) state that regular emptying and maintenance of small sewage treatment plants must be undertaken by the homeowner at least once per year, or as per the manufacturer’s guidelines.
• As a homeowner, you must also ensure that your system remains in good order and replace it when necessary.
• We do recommend that you keep a detailed log of when your system is inspected, maintained, emptied or serviced as you may need these details in future.
• Our treatment plant service includes a full check to ensure everything is in perfect working order.
• Our team can be reached on [email protected] or 033 240 6868
