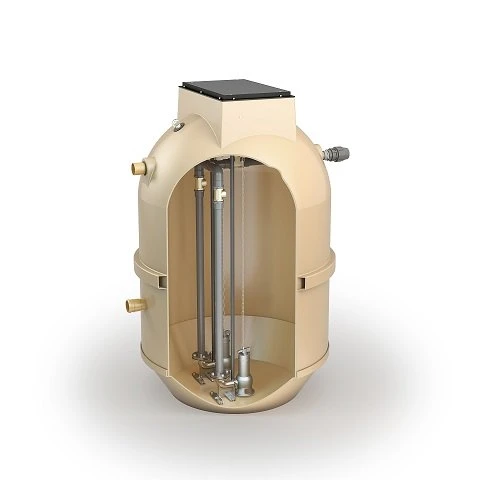

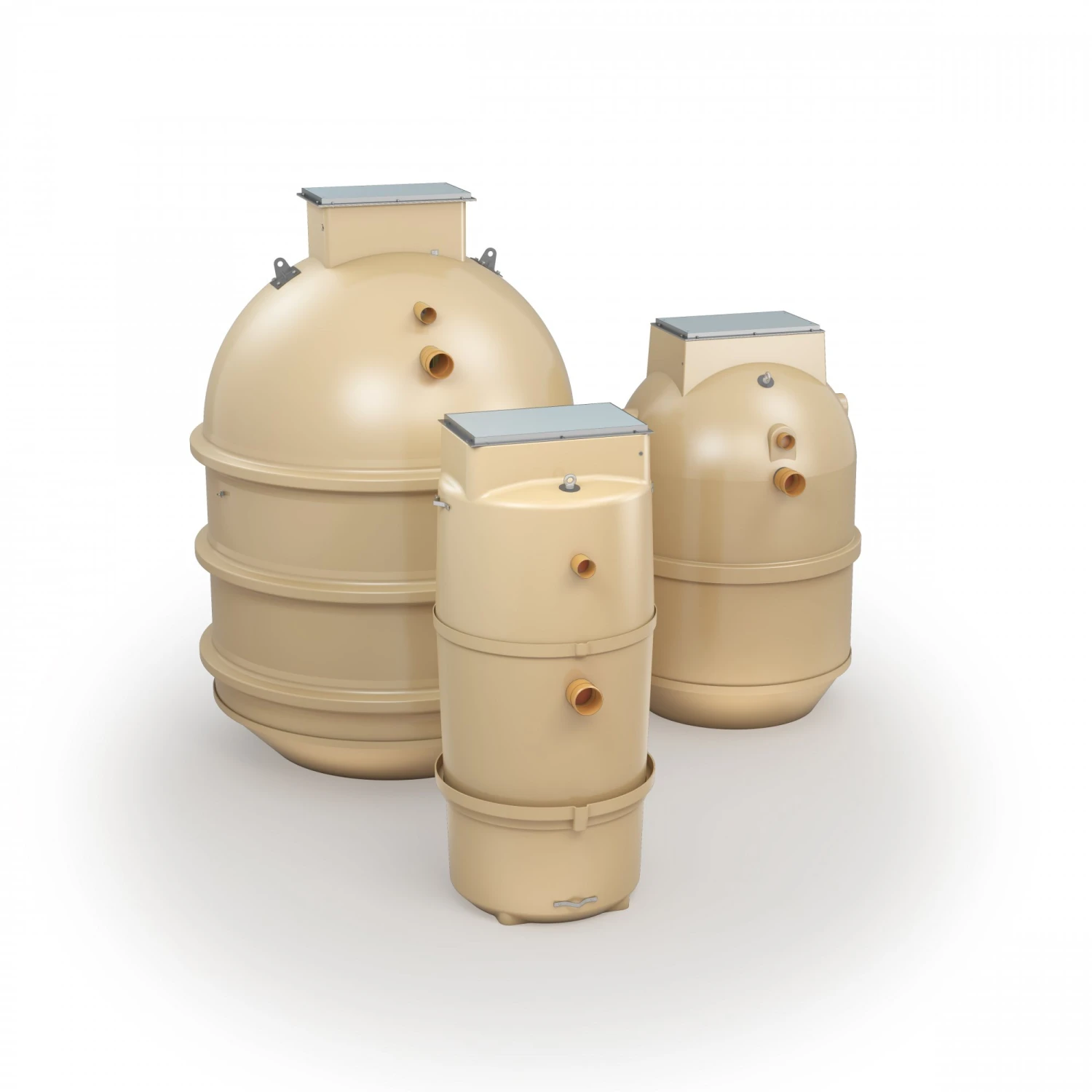

Klargester Sewage Pumping Station From 5,000 – 10,200 Litres – PU18 Range

Klargester Sewage Pumping Station – PU18 Vertical Pump Station Range

Single or Twin Pump Options from 5,000 – 10,200 litres

Klargester vertical pumping stations are ideal for developments and premises where drainage by gravity is not an option.

Manufactured from robust GRP, Klargester vertical pumping stations are designed as a single piece chamber engineered with the highest quality parts and fittings.

Available in a range of sizes, suitable for commercial applications from small roof run offs, to large SUDS schemes, Klargester vertical pumping stations deliver up to 70 litres/second and have 24-hour storage capacity for foul waste to comply with Building Regulations. .

All of our pump stations can be fitted, or retrofitted, with Kingspan’s SmartServ Pro remote asset monitoring software to provide you with total visibility over the wastewater system across your estate

Product Benefits

• Internal lifting chains and guide rails (as specified).
• High-level alarm.
• Wide range of single or twin pump options including macerators/vortex.
• Range of emergency overflow tanks, if required.
• Inlet connection sizes to suit site.
• Wide range of invert depths and positions to suit applications.
• GRP chambers with internal pipework in plastic, galvanised or cast iron.
• Optional single door kiosk with warning beacons and optional telemetry systems.
• Service and maintenance plans available to prolong the life of the pump systems.
• Grundfos pumps for submerged installation.

Klargester PU18 Vertical Single Pump Station Specifications

Vertical Tanks Size (mm)	Capacity (L)	Case Depth	Tank Material	Control Panel	High Level Alarm	Pump Type Options
1800 Diameter	5000	2.0m	GRP	Included	Standard	Single/Twin
1800 Diameter	6000	2.5m	GRP	Included	Standard	Single/Twin
1800 Diameter	7000	3.0m	GRP	Included	Standard	Single/Twin
1800 Diameter	8000	3.5m	GRP	Included	Standard	Single/Twin
1800 Diameter	9000	4.0m	GRP	Included	Standard	Single/Twin
1800 Diameter	10,200	4.5m	GRP	Included	Standard	Single/Twin





• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: GRP
• Tank Use: Below Ground, Sewage
• Twin or Single: Single, Twin
