Klargester Full Retention Separator – NSFP006 – 335M² Drainage Area

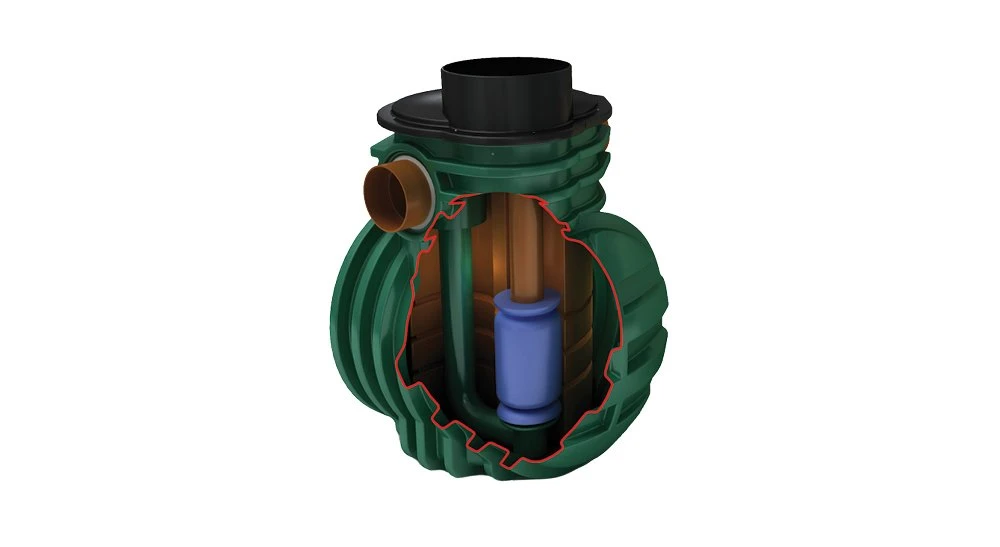

Klargester NSFP006 Full Retention Separator for 335m2 drainage area

The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.

Kingspan Klaregsters range of full retention separators were the first UK manufacturer to have the required 3 -30 l/sec certified to EN 858-1 in the UK. The NSF number denotes the flow at which the separator operates.


Full Retention Separator Features

• Designed for easy installation, saving time and money
• Certified to EN858 – 1 and PPG3 for complete peace of mind
• Oil alarm probe tube available (required by EN858-1 and PPG3)
• Fitted inlet/ outlet connections
• Vent points within necks
• Maintenance from ground level
• PE and GRP model construction – high strength and durability
• CE – Marked

Applications

Klargesters full retention separators are used in high risk spillage areas such as:

• Fuel Distribution depots
• Vehicle workshops
• Scrap Yards



NSFP006 Specifications

• Model Reference: NSFP006
• Material: Polyethylene Chamber Construction
• Flow (l/s): 6
• Drainage Area (m2) PPG-3 (0.018): 335
• Storage Capacity (L) Silt: 600
• Storage Capacity (L) Oil: 60
• Length (mm): 1700
• Diameter (mm): 1350
• Manhole Cover Dimensions (mm): 600
• Base Inlet Invert (mm): 1410
• Base to Outlet invert (mm): 1335
• Min Inlet Invert (mm): 550
• Standard Pipework Diameter (mm): 160

Available with Smart Commissioning

Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

*Kingspan monitoring is for alert only.

Service/maintenance packages are available at separate cost on request.



• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1350mm
• HIAB Available: HIAB Available
• Material: Polyethylene
• Tank Use: Below Ground
