Klargester Full Retention Separator – NSFA040 – 2225M² Drainage Area

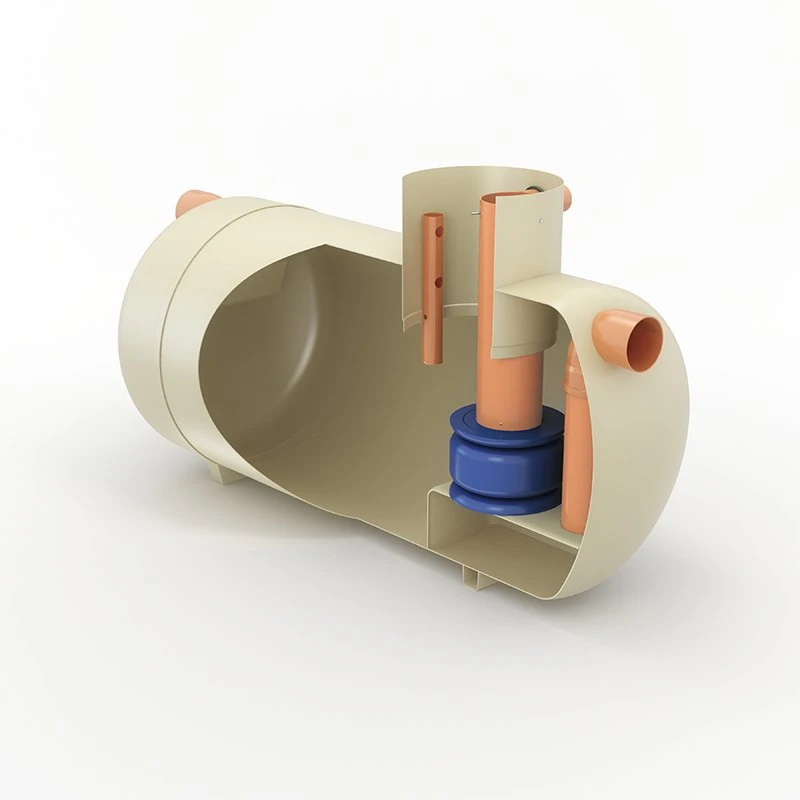

Klargester NSFA040 Full Retention Separator for 2225m² drainage area

The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.

Full Retention Separator Features

• Designed for easy installation, saving time and money
• Certified to EN858 – 1 and PPG3 for complete peace of mind
• Oil alarm probe tube available (required by EN858-1 and PPG3)
• Fitted inlet/ outlet connections
• Vent points within necks
• Maintenance from ground level
• GRP model construction – high strength and durability
• CE – Marked

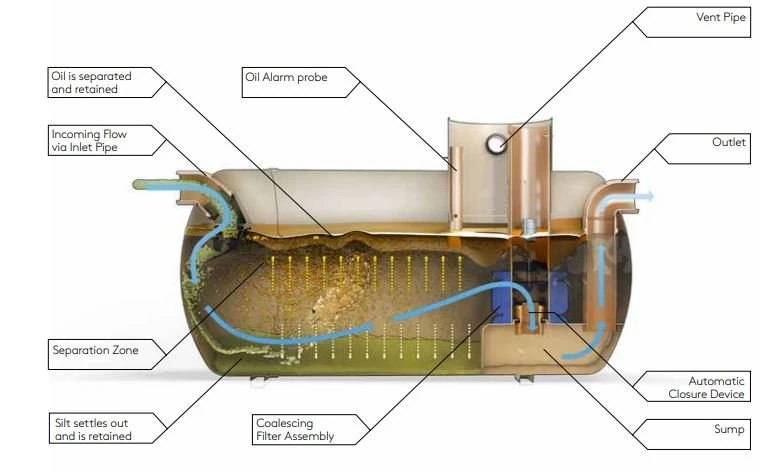

Each full retention Separator design includes the necessary volume requirements for:

• Oil Separation capacity
• Oil Storage volume
• Silt Storage capacity
• Coalescer
• Automatic Closure Device



NSFA040 Technical Specifications

• Model: NSFA040
• Material: GRP Chamber Construction
• Flow (l/s): 40
• Drainage Area (m²) PPG-3 (0.018): 2225
• Storage Capacity (L) Silt: 4000
• Storage Capacity (L) Oil: 400
• Length (mm): 4640
• Diameter (mm): 2010
• Manhole Cover Dimensions (mm): 600
• Base Inlet Invert (mm): 1810
• Base to Outlet Invert (mm): 1760
• Min Inlet Invert (mm): 1000
• Standard Pipework Diameter (mm): 315



Available with Smart Commissioning

Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

*Kingspan monitoring is for alert only.

Service/maintenance packages are available at separate cost on request.



Delivery

Kingspan Klargester Full Retention Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading,  HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.







• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 2010mm
• HIAB Available: HIAB Available
• Material: GRP
• Tank Use: Below Ground
