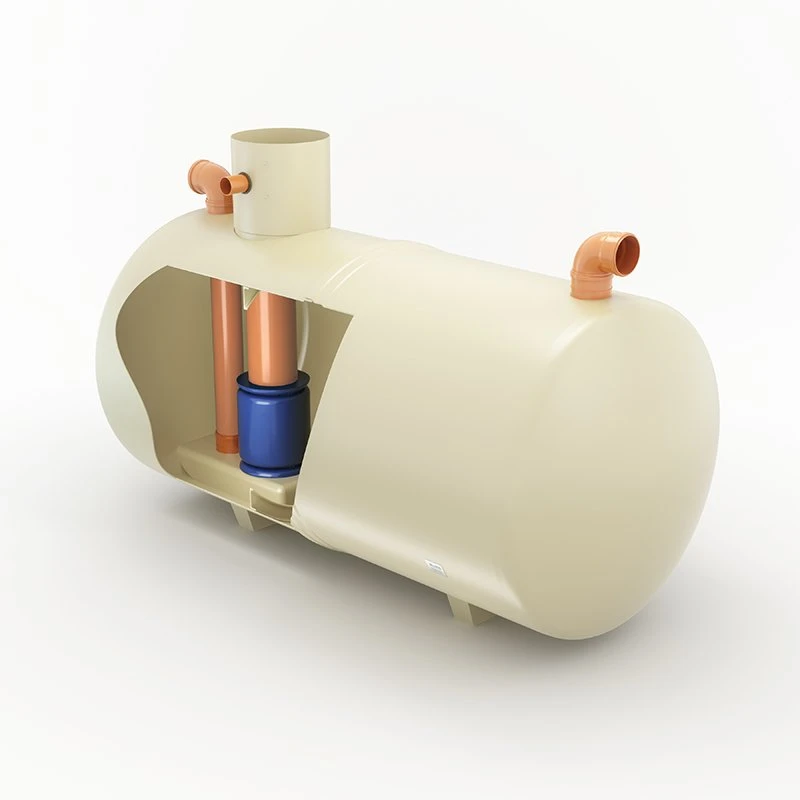

Klargester Forecourt Separator

Klargester Forecourt Separator – 10,000 Litres

The Klargester forecourt separator is designed for installation in petrol filling station forecourts and similar application. The function of the separator is to intercept hydrocarbon pollutants such as petroleum and oil and prevent their entry to the drainage system, thus protecting the environment against hydrocarbon contaminated surface water run-off and gross spillage

Operation ensures that the flow cannot exit the unit without first passing through the coalescer assembly. In normal operation, the forecourt separator has sufficient capacity to provide storage for separated pollutants within the main chamber, but is also able to contact up to 7,600 Litres of pollutant arising from the spillage of a fuel delivery tanker compartment on the petrol forecourt. The separator has been designed to ensure that oil cannot exit the separator in the event of a major spillage, subsequently the separator should be emptied immediately.

Forecourt Separator Features

• Light and easy to install
• Inclusive of silt storage volume
• Fitted inlet/ outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Available with 160mm or 200mm inlet/oulet pipework options
• Maintenance from ground level
• Oil storage volume.
• Coalescer
• Automatic closure device
• Oil alarm system available
• CE – marked



Forecourt Separator Specifications

Class	I	I
Backfill Type	Concrete	Concrete
Total Capacity (L)	10000	10000
Drainage Area (m2)	835	1115
Peak Flow Rate (l/s)	15	20
Length (mm)	3915	3915
Diameter (mm)	2020	2020
Access Shaft Diameter (mm)	600	600
Base Inlet Invert (mm)	2180	2180
Base to Outlet Invert (mm)	2130	2130



Applications

• Garage Forecourts
• Car Parks
• workshops
• Supermarket / Shopping Centres
• Distribution Warehouses
• Car Wash Bays
• Scrap Yards
• Car Garages
• Fuel Storage Sites
• Distribution / Haulage Centres
• Waste Transfer Sites
• Business, Commercial parks and Industrial Estates

British European Standard EN 858-1 and the Environment Agency Pollution Prevention guideline PPG3 requires all separators are to be fitted with an oil level alarm system. It should be installed and calibrated by a suitably qualified technician so that it will respond to an alarm condition when the separator requires emptying.

Available with Smart Commissioning

Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

*Kingspan monitoring is for alert only.

Service/maintenance packages are available at separate cost on request.



Delivery

Our Forecourt Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading,  HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.











• Product Code: KLA
• Customer Offloading: Customer Offloading
• Diameter: 2010mm
• HIAB Available: HIAB Available
