Klargester BA-X BioDisc Sewage Treatment Plant Up To 12PE

Klargester BioDisc BA-X Sewage Treatment Plant for up to 12PE*

For Domestic dwellings without access to mains drainage, the Klargester BioDisc provides a reliable, efficient and environmentally safe solution to your sewage disposal needs.

It is ideal for locations where discharge is to sub-surface irrigation, or to a suitable watercourse where approved by the regulator, and where a septic tank will not meet the required standard.

For added peace of mind, we offer an extended warranty period of 7 years* exclusively for the BioDisc BA ad BB models. *(Terms and conditions apply) – View Kingspan’s full warranty terms today.

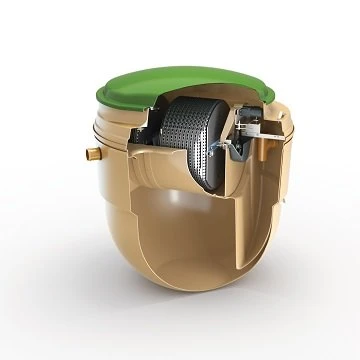

The BioDisc is the only packaged Sewage Treatment Plant which utilises the Rotating Biological Contactor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint. Where the Klargester Gravity BioDisc demonstrated an efficiency rating equivalent to a performance of 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l Ammonia.

Choose from either Gravity or Integral Pumped System (IPS):

Gravity is the standard option, however where the inlet to the watercourse or soak away is higher than the outlet of the treatment plant you will require the optional Integral Pumped System (IPS) as this will pump the waste water uphill and into your discharge point. The pumped system (IPS) also comes with a high level alarm.

BA-X Technical data

Model:	BA-X
Population Equivalent (Standard Flow):	12*
Maximum Daily BOD (kg):	0.54
Maximum Daily Flow (m3):	1.8
Maximum Daily Ammonia (g NH4)	48
Diameter (mm):	1995
Invert Depth Options (mm):	450 / 750 / 1250
Depth Below Inlet Invert (mm):	1400
Outlet Invert Depth (mm):	1315
Overall Height (mm) Depending on Invert:	2160 / 2460 / 2960
Height to Rim Of Cover (mm) Depending on Invert:	1945 / 2245 / 2745
Empty Weight (Kg):	310 / 325 / 380
Standard Power Supply:	1 Phase
Motor Rating (Watts):	60
Full Load Current 1 Phase (amps):	0
Sludge Return Pump Rating (watts):	250

*Based on residential applications and daily flow rates

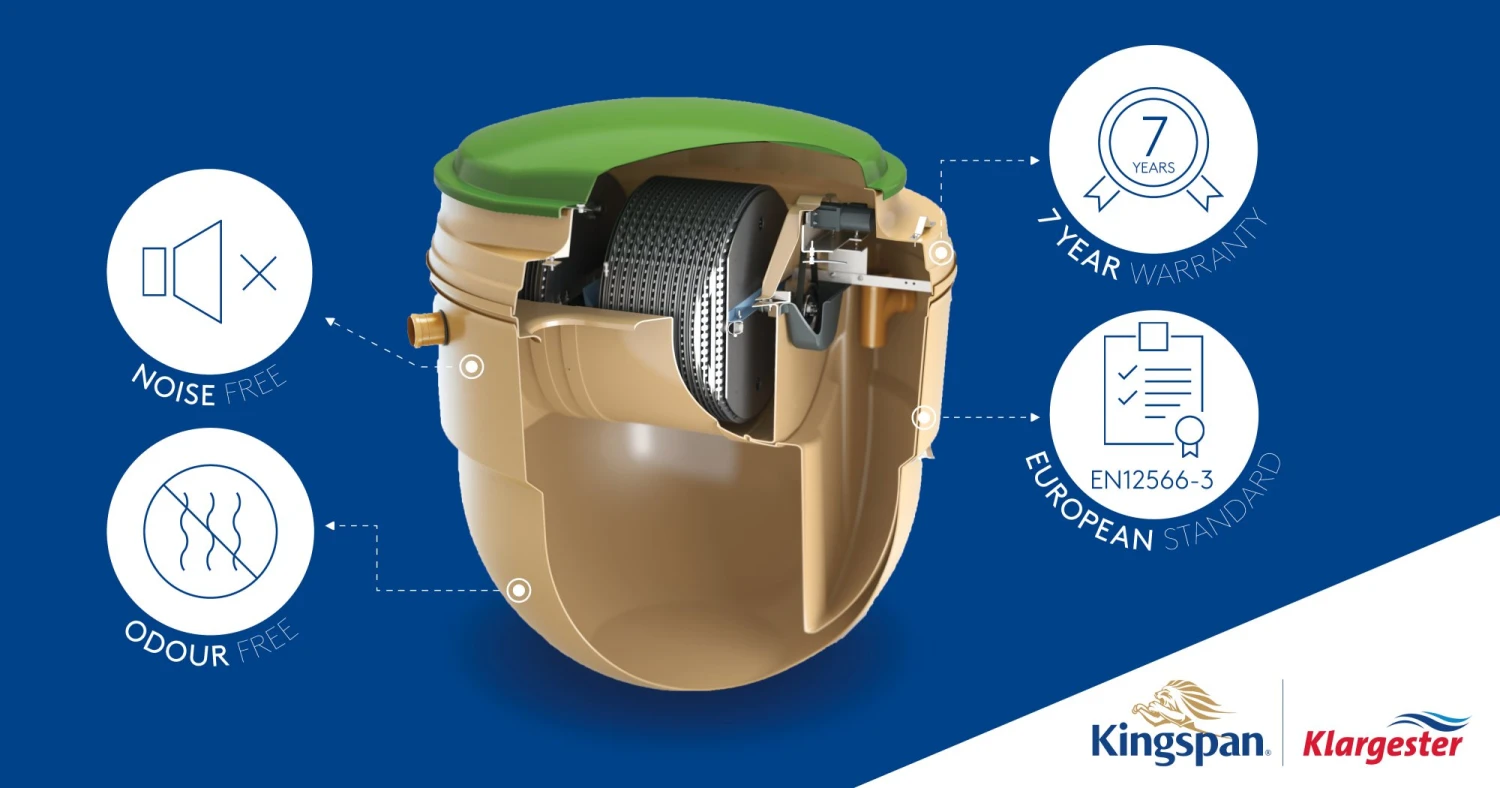

Klargester BA-X Tank Features:

• Market leading extended warranty period of 7 years* (terms apply)
• Affordable running costs and maintenance costs
• Low noise when in operation and odours free – to BS EN13725 standard
• Suitable for homes with up to 12 people*
• Low profile covers for minimal visual impact and childproof locks
• Invert options to match the site
• Control panel issues an immediate alert when a problem occurs
• Single phase standard power supply
• Optional integral pump available
• CE marked
• Pumped outlet: 50 mm MDPE compression fitting

Performance and Compliance

• Certified to European Standard BS EN 12566 Part 3.
• Performance certified to achieve 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l ammonia.
• Fully marked in line with the CPR 2013.

For more information regarding the Klargester BioDisc, please click the following link – Klargester BioDisc

Please click on the following link to register your warranty.

https://www.kingspan.com/gb/en-gb/products/wastewater-management/guarantee





• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Free Site Survey: Free Site Survey
• HIAB Available: HIAB Available
• Tank Use: Below Ground, Sewage
• Warranty: Klargester 7 Years
