Hippo 80-200 Sewage Pump, Horizontal Discharge

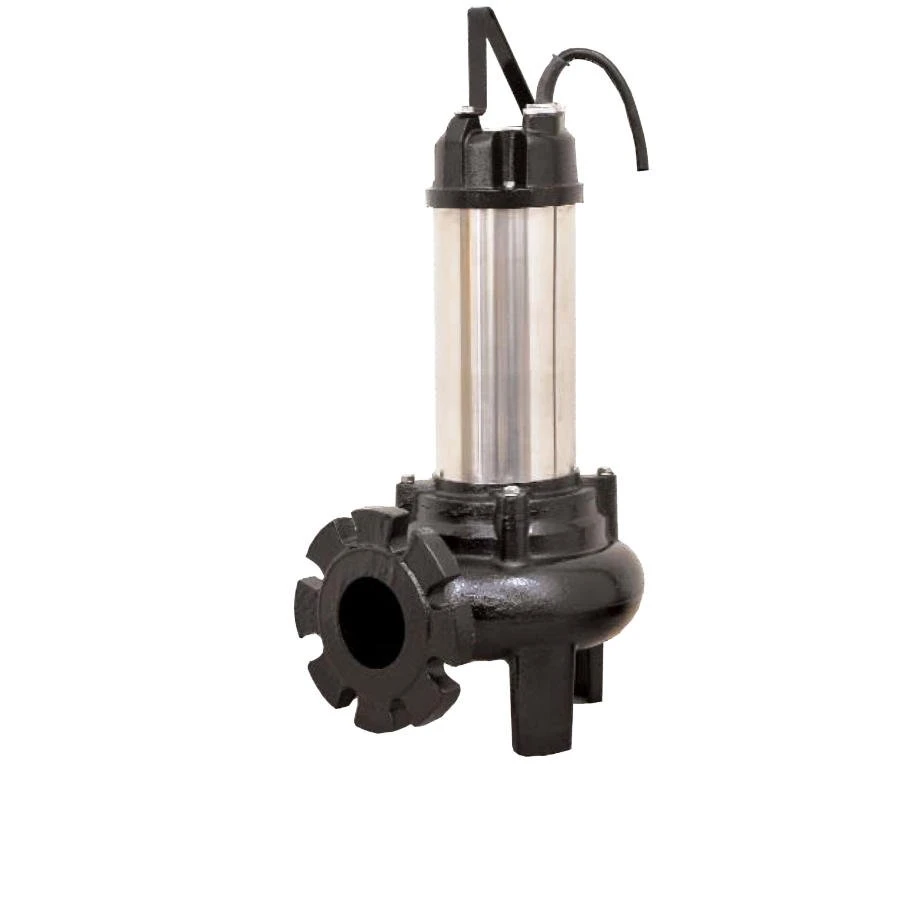

HIPPO 80-200 Sewage Pump with horizontal discharge

Submersible Pump

• These 230/1 / 50 pumps have been designed specifically for heavy-duty wastewater and sewage type applications.

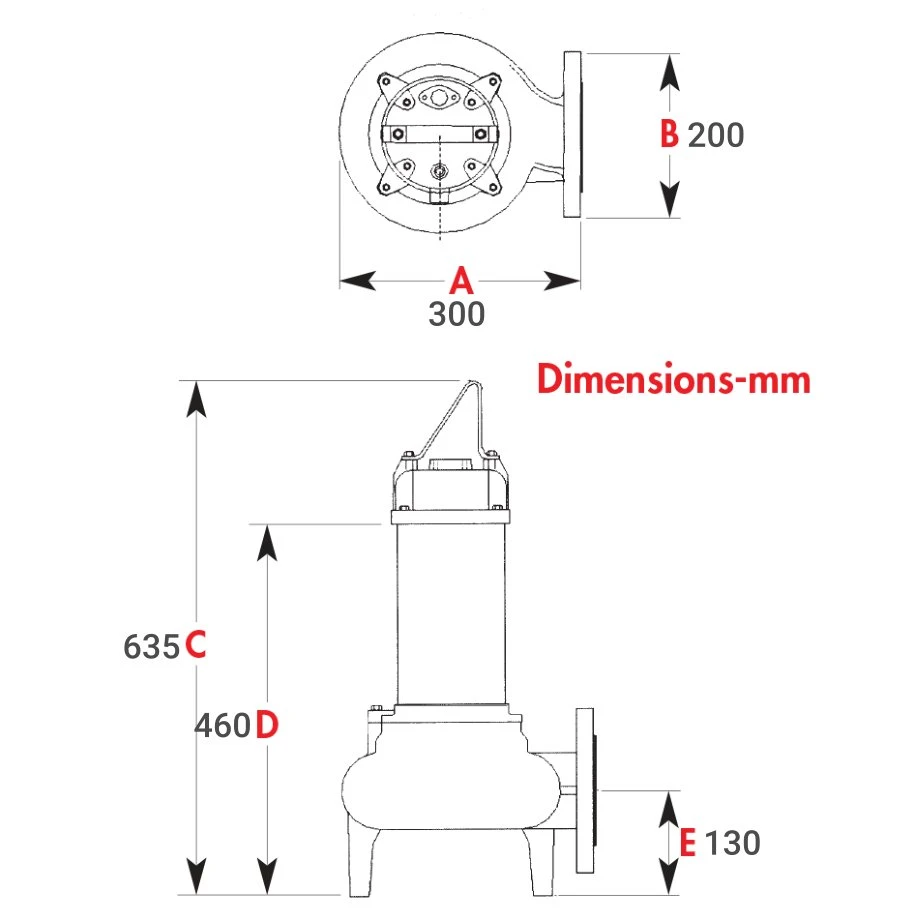

• They feature recessed vortex impellers, providing a 3″ solids handling capability. DN80 discharge flange.
• For heavy-duty applications with soiled biological wastewaters, sewage, and rainwater
• For both domestic and professional use
• Available in 3 Phase
• Manual or Float Switch options available
• Hippo 80-150 = 1.1 kW – FLC = 9.8 Amp – Weight 31 kg
• Hippo 80-200 = 1.5kW – FLC = 11.2 Amp – Weight 33 kg
• Internal Capacitor: 301-1F 1 .1 kW, 401-1F 1 .5kW.
• Double mechanical seal Eagle Burgmann
• Upper: Ca/Ce – Lower Sic/Sic
• Oil bath with NBR oil seal
• Built in Thermal protector
• Cast Iron FC 200/Stainless Steel construction
• Maximum operating temperature 40 °C
• Maximum 20 Starts per hour.
• 1 OM H07RN-F cable as standard
• 2″ Guide rail is available



Delivery

All our Sewage Pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

• Product Code: DPT
• Customer Offloading: Customer Offloading
• Shape: Upright
• Tank Use: Sewage
