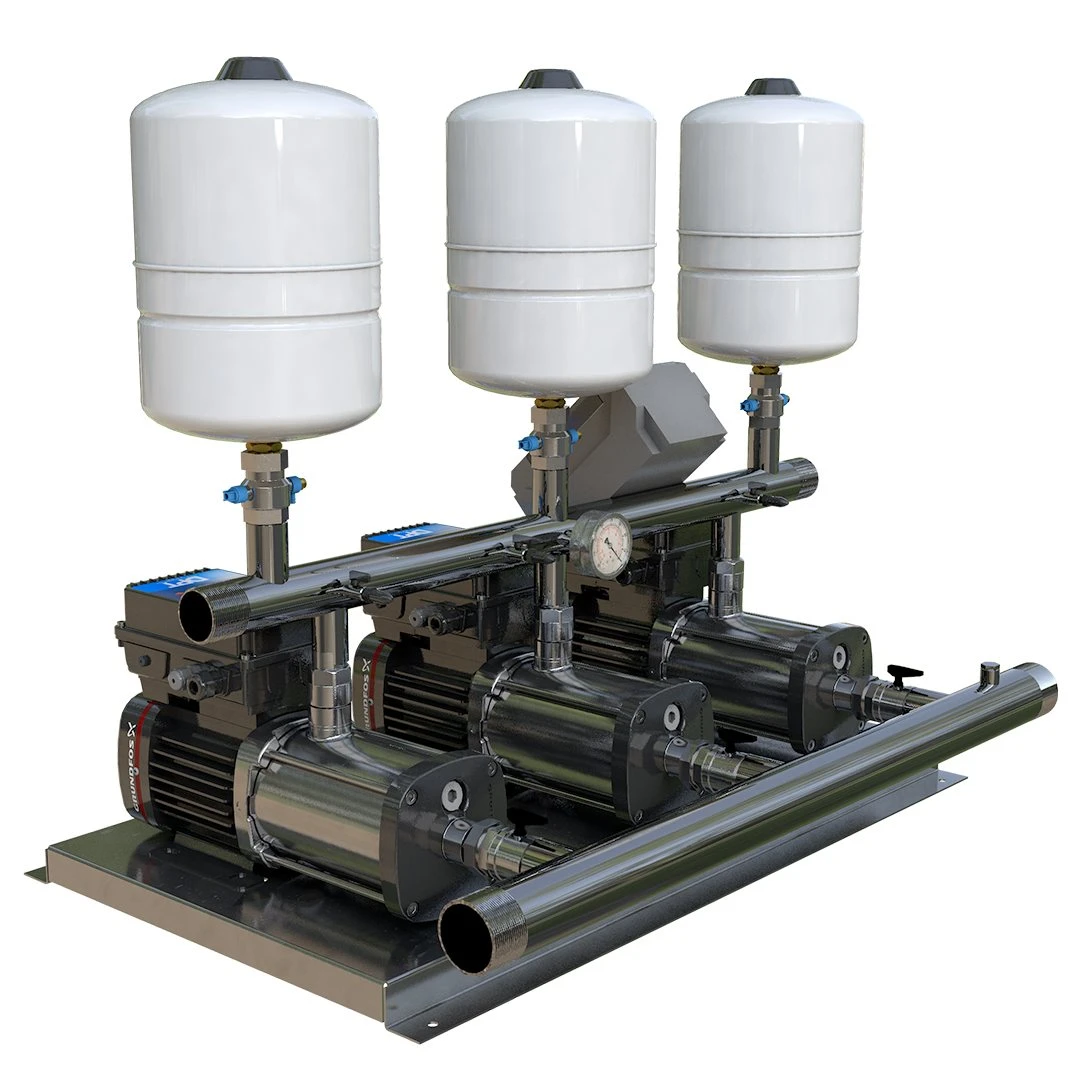

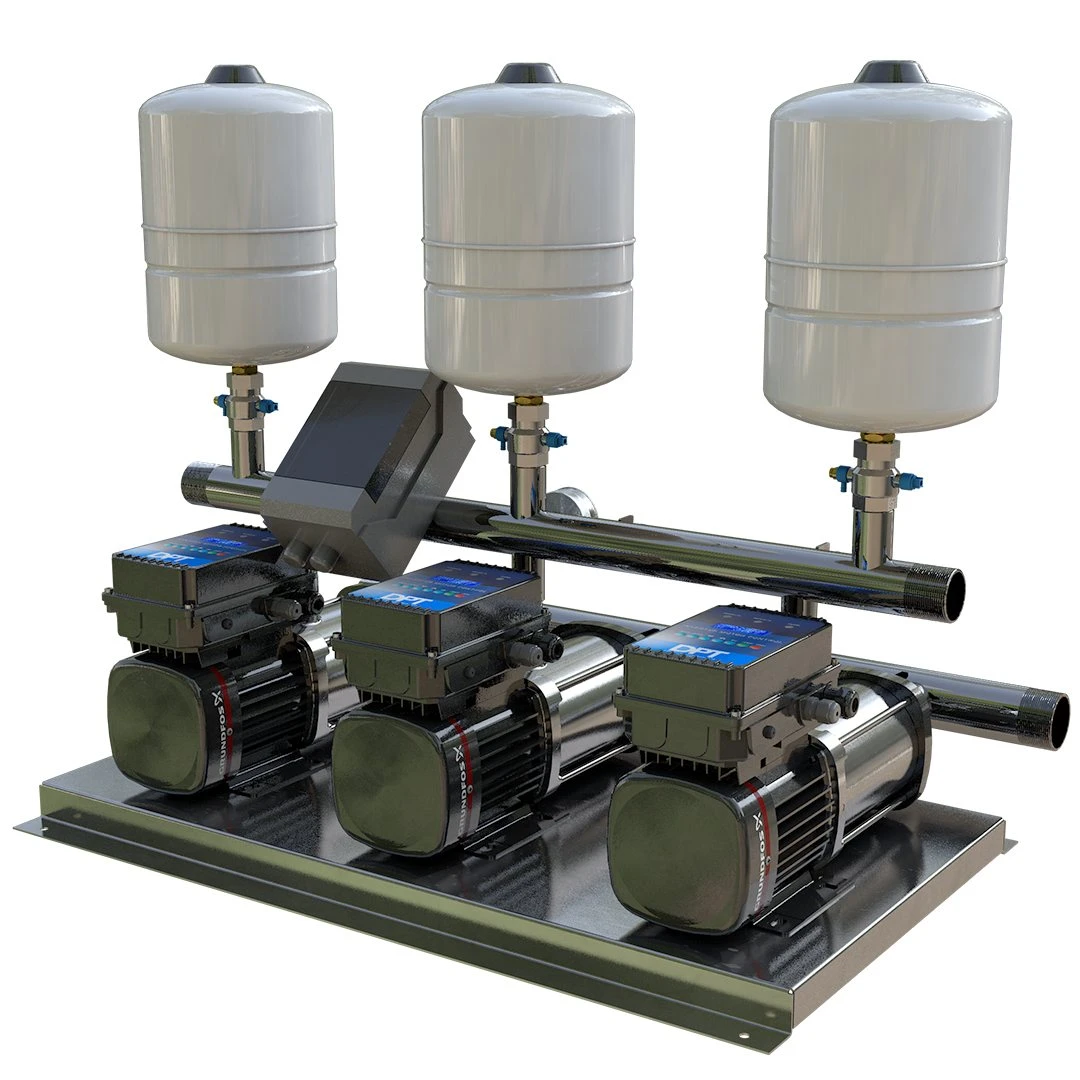

Grundfos Triple Booster Pump With TD Variable Speed Controller, 162L/MIN @ 4.5 BAR

Grundfos Variable Speed Booster Set

162L/MIN @ 4.5 BAR

The Tanks Direct Grundfos variable speed cold water booster pump with TD Variable speed controller, is designed to increase the pressure of water services within a building where the existing incoming main is not sufficient. The pressure boosters are suitable for private water supply applications, particularly where constant pressure is required or where there are large fluctuations in demand.

The booster set is available in single/twin/triple pump configuration to provide a wide array of flows and pressures to meet your specific application requirements. Each booster set features industry leading Grundfos horizontal pumps paired with motor-mounted inverter(s) packed with technology and features.

The system comes fully assembled with valves, manifolds (twin and triple sets only), transducers, pump(s) and inverters. Mounted on a steel baseplate (twin and triple only).



Key Features

• Plug and play system.
• 304 Stainless steel WRAS approved Grundfos pumps
• Simple setup and management
• Variable speed inverter
• Dry run protection
• 2no PWB 8 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge.
• Tested and programmed prior dispatch.
• Stainless-steel Fittings
• Air-cooled inverters
• Available in single, twin, and triple set options





You can also find the table below for the flow rate and pressure of each pump so you can easily add this into the title of each pump:-

Configuration	Model	l/m	Pressure (bar)
Single	3RS-5	36	4.5
	3RS-7	36	6.5
Twin	3RS-5	73	4.5
	3RS-7	73	6.5
Triple	3RS-5	108	4.5
	3RS-7	108	6.5
Single	5RS-5	54	4.5
	5RS-7	54	6.5
Twin	5RS-5	108	4.5
	5RS-7	108	6.5
Triple	5RS-5	162	4.5
	5RS-7	162	6.5
Single	10RS-3	125	4.5
Twin	10RS-3	250	4.5
Triple	10RS-3	375	4.5
