Garden Filter

Garden Filter

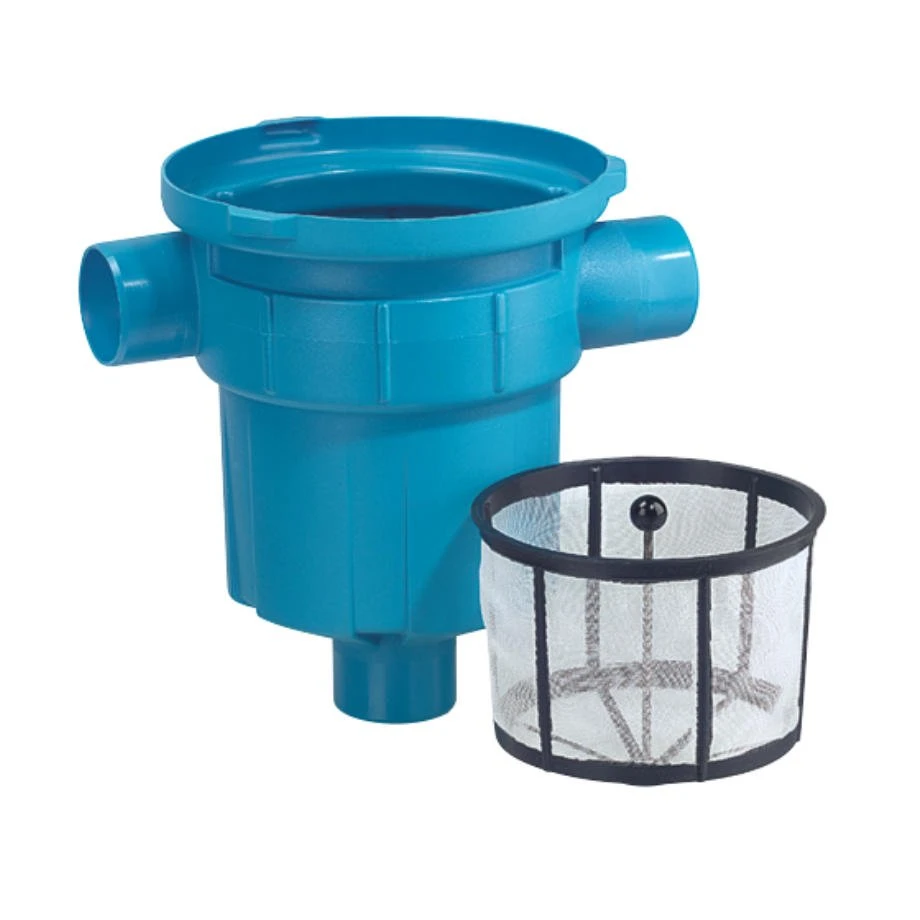

A total retention rainwater filter with integrated dirt collecting basket at mesh width of 1 mm. The filter basket is easily removed with a removal handle. Installaton in a rainwater tank or turret, or before a tank in the ground using the 3P Telescopic Extension Set with lid. This filter is very suitable for equipments of watering the garden and for sites in which the rainwater has to be drained away. That means where no connection with a sewer is possible.

All inlets and outlets at DN 100, one inlet can also be used as an emergency overflow. The cleaned rainwater is led through the lower connection into the rainwater tank. Also a calmed inlet can be installed there.
Connection capacity for roof areas up to 200m²

How it works:

1. Rainwater is led onto the filter cartridge.
2. The dirt is detained in the dirt collecting basket. The basket has to be cleaned if necessary.
3. One inlet DN 110 can also be used as an emergency overflow.
4. Cleaned water flows over the inlet DN 110 into the rainwater tank.
5. Use of a calmed inlet is possible.



Delivery

All our garden filters are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: 3P
• Customer Offloading: Customer Offloading
