Ebara Multigo Pump M40/08

Ebara Multigo Pump M40/08

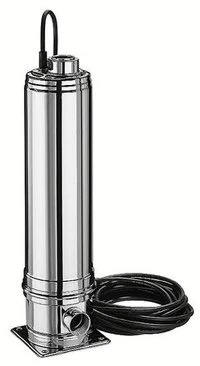

This is a Multigo 40/08 Vertical multistage centrifugal electric pump (AISI 304)

APPLICATIONS

• Flooded areas
• Boosting of hydraulic plants
• Fountains
• Rainwater Harvesting
• Allotments & Gardens

TECHNICAL DETAILS

• Quiet & Reliable
• Moving water cools the motor
• Durability ensured by interposed oil chamber
• Equipped with 20 metres of H07 RN-F power supply cable

PUMP TECHNICAL DATA

• Maximum working pressure: 10 bar
• Maximum temperature of the liquid: 40°C
• Maximum suction depth: 6 m

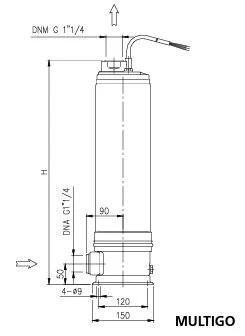

• G1frac14; suction and discharge connection
• MEI > 0,4

MOTOR TECHNICAL DATA

• Asynchronous motor cooled via the moving liquid
• Class of insulation F
• IP68 Protection degree
• 230V ±10%, 50Hz single-phase voltage, 400 ±10%, 50Hz three-phase voltage
• Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
• Protection under user’s responsibility for the three-phase version

MATERIALS

• Pump casing, seal housing disc, external casing and motor cover in AISI 304
• Impeller and diffuser in PPE+PS reinforced with fibreglass
• Shaft in AISI 416
• Mechanical seal in Carbon/Ceramic/NBR
