Ebara IDROGO M 40/08 Without Float

Ebara IDROGO M 40/08 without Float

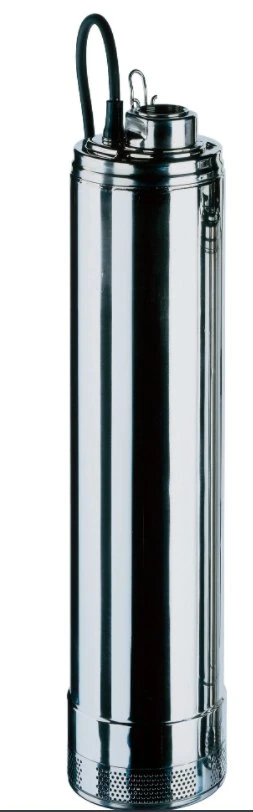

The IDROGO M 40/08 is a 5″ submersible centrifugal multistage pump made of stainless steel AISI 304.

APPLICATIONS

• Moving clear water from wells & cisterns.
• Pressure boosting domestic plants
• Small-sale irrigation
• Rainwater Harvesting
• Washing vehicles
• General pressure increases

TECHNICAL DETAILS

• Equipped with twin mechanical seal with interposed oil chamber
• Supplied with 20 m of H07RN-F power supply cable (5m for IDROGO 40/06 M model)
• Single phase version with float on request (version “A”)
• Available in the 230V ±10% 50Hz three-phase version
• Installation: in horizontal and vertical position

PUMP TECHNICAL DATA

• Maximum working pressure: 10 bar
• Maximum temperature of the liquid: 40°C
• Maximum immersion for pumps with 20m cable (version with floatswitch): 10 m
• Maximum immersion for pumps with 20m cable: 17 m
• Maximum immersion for pumps with 5m cable: 2 m
• Maximum solid size passage: 2.5 mm
• G1¼ discharge connection

MOTOR TECHNICAL DATA

• 2 poles self-ventilated asynchronous motor cooled via the moving liquid
• Class of insulation F
• IP68 Protection degree
• 230V ±10%, 50Hz single-phase voltage 400 ±10%, 50Hz three-phase voltage
• Permanent capacitor inserted and thermo-amperometric protection with automatic reset incorporated for the single phase motor
• Protection under user’s responsibility for the three-phase version

MATERIALS

• External casing, motor cover, casing cover, filter and closing ring in AISI 304
• Impeller, diffuser and spacer in PPE+PS reinforced with fibreglass
• Shaft in AISI 431
• Upper mechanical seal (motor side) in Carbon/Ceramic/NBR and lower (pump side) in SiC/Carbon/NBR
