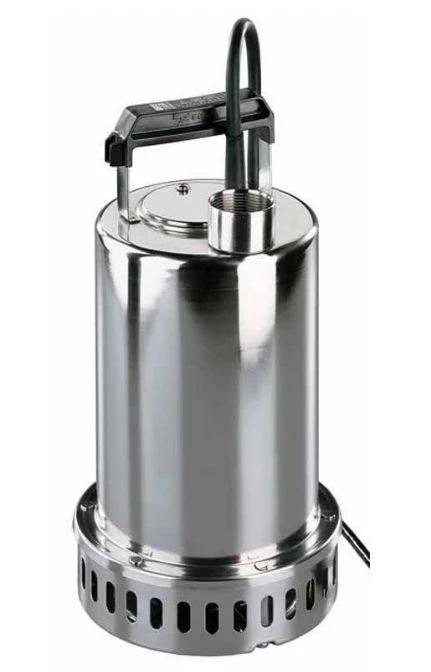

EBARA BEST FOUR (M) SUMP PUMP

EBARA BEST FOUR M SUMP PUMP

The Ebara Best Four Manual Submersible pump can be used for various domestic applications including draining wells, garages, cellars or places that are subject to flooding.

It can also be used for movement of seepage water or draining of unfoul wastewater as well as irrigation of gardens.

Technical Details

• Equipped with mechanical seal as per standard
• Corrosion Proof
• Can be used in fixed or mobile installations
• 10m of H05 RN-F Power supply cable for indoor and outdoor use – without float.

Pump Technical Data

• • 1 1/2″ BSP Female outlet
• • Total Head from 1.5 to 8m
• • Capacity from 1.2 to 9 m3/h
• • Maximum Immersion: 5m
• • Maximum Liquid Temperature: 50°C
• • Maximum Solid Size Passage: 10mm

Motor Technical Data

• Asynchronous motor, 2 poles
• Class of insulation F
• IP68 Protection degree
• 230V ±10%, 50 Hz single phase voltage

Materials

• Pump casing, suction grill, seal housing disc and motor pump body in AISI 304 Stainless Steel
• Impeller, diffuser and motor cover in techno polymer reinforced with fibreglass
• Shaft in AISI 303
• Standard mechanical seal (Carbon/ Ceramic/ NBR)
