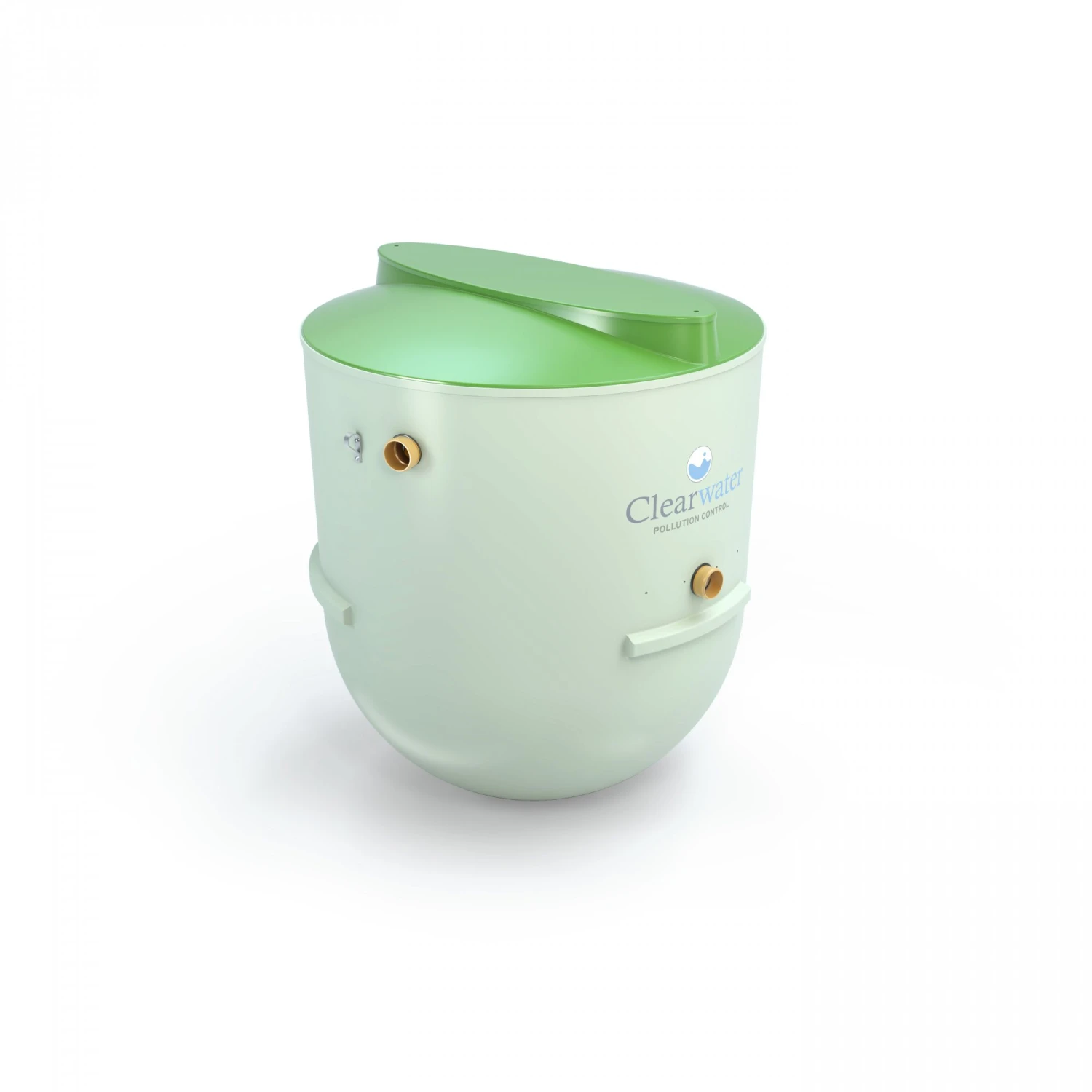

Clearwater E6 BTA Sewage Treatment Plant 1-6 People

Clearwater E Range Sewage Treatment System 6 Person

The Clearwater E Range is the economical off-mains solution for single houses and uses the tried and tested aerobic biological process for the treatment of domestic sewage.

The Range now comes with improved effluent quality with higher BOD5 and TSS removal than older Clearwater E range models.

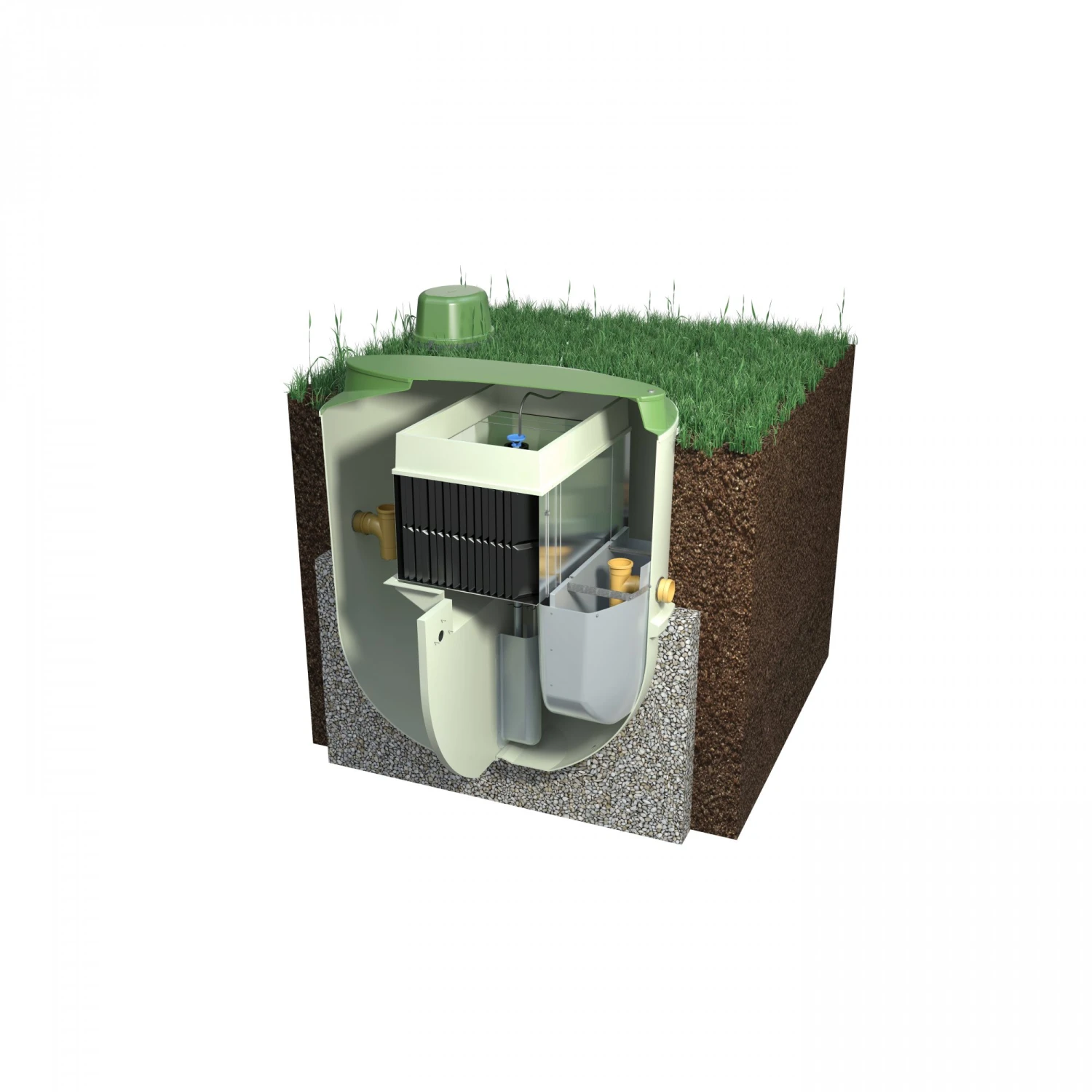

Clearwater E Range sewage treatment systems are ideal for single/multiple houses and employ the well proven aerobic biological trickling filter process for the treatment of sewage.

Easy to install, this Clearwater E6 system is suitable for a population of 6.

Clearwater E6 – Key Features

• Affordable running costs of £147 per year*
• Isolator & Failure Light
• Easy to install and maintain with annual desludging.
• Improved effluent quality with higher BOD5 and TSS removal than older Clearwater E range models.
• Third party certified to EN12566-3 standard for assured performance
• CE marked

*Based on a 6PE BioTec model / unit cost of 0.269p per KwH and daily power consumption of 1.5KwH.

Technical Data

• Population Equivalent:   6 person
• Outside diameter:   1.8 m
• BOD Load (kg/day):   0.36
• Two inlet depth options to choose from: 1.0 m (as standard) and 1.5 m
• Pipework diameter:   110 mm
• Standard power supply:   Single phase
• Blower (kW):  0.04
• Weight (approximate):   250 kg (1.0 m Gravity) / 280 kg (1.5 m Pumped)
• Pumped outlet: 50 mm MDPE compression fitting

Performance and Compliance

• Certified to BS EN 12566 Part 3 standard.
• BOD5 -96.2%; SS – 97%; Ammonia – 82.4%;
• Fully CE marked in line with the CPR 2013.

*Free Survey subject to distance – Please contact us from more information



Please click on the following link to register your warranty.

https://www.kingspan.com/gb/en-gb/products/wastewater-management/guarantee



Delivery

All our Clearwater tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: CL
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Free Site Survey: Free Site Survey
• HIAB Available: HIAB Available
• Tank Use: Below Ground, Sewage
