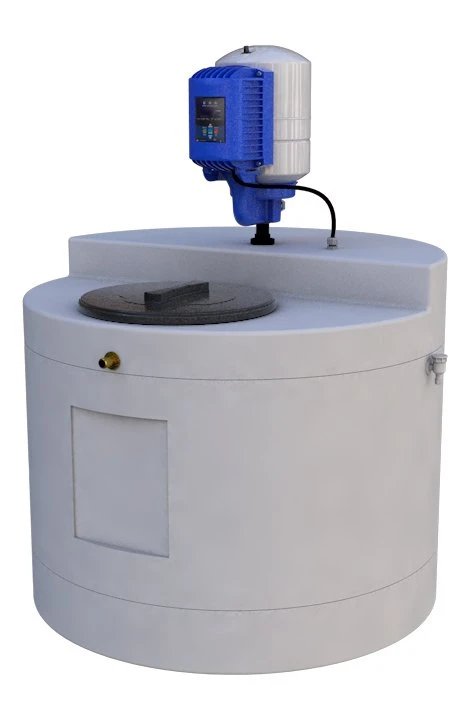

Aquamaxx 800 Litre Cold Water Tank, Single Pump Booster Set

800 Litre Cold Water Tank with a Single Pump Booster set

The Aquamaxx has been specifically designed for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and town houses would benefit the most from a compact system.
The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine, so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed, i.e. a tap or outlet is opened and closed.

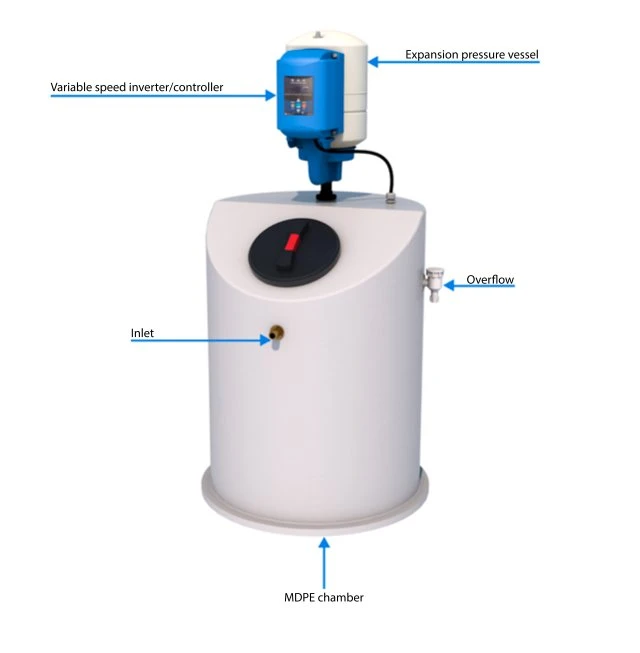

Features

• Non-corrosive holding tank (WRAS approved material)
• Pre-fitted WRAS approved fill valve
• WRAS approved submersible pump (s).
• Integral overflow weir
• Minimal installation requirement
• Digital display flow controller
• Dry run protection with auto restart (time delay)
• WRAS Approved inverter and vessel





Tank Capacity	Pump Arrangement	Diameter (mm)	Height (mm)	Inlet	Outlet (Single)	Outlet (Twin)	Overflow
800 Litres	Single	1000	1370	1/2” BSP	1” BSP	N/A	22 mm



Pump

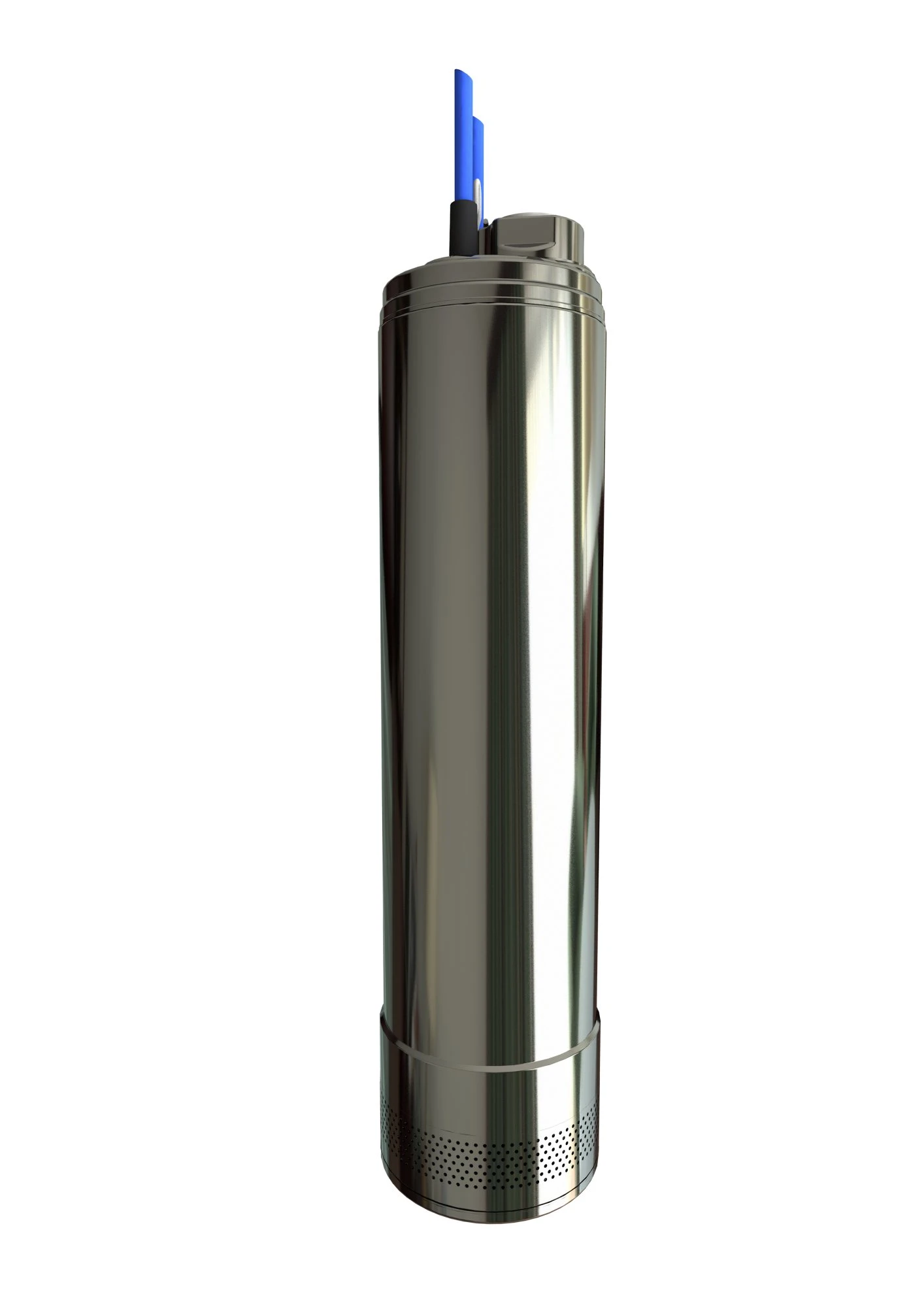

All Aquamaxx booster sets use the IDROGO submersible pump. Comprising a stainless steel outer casing and glass fibre reinforced PPE impellers, this pump is reliable and corrosion-resistant.

Features of the pump

• PPE + PS impeller with glass fibres
• Stainless steel 431 Shaft (EN 1.4057)
• WRAS Approved
• An AISI 304 outer casing
• Carbon/Ceramic/silicon/NBR mechanical seal
• Pre-installed into every Aquamaxx tank

Model Number	Mid-Curve flow	Mid-Curve Pressure	kW Rating	Running Current (amp)	Supply Voltage	Inlet	Outlet	Overflow Size	Dry weight
FV40/10S	40 l/min	4.5 bar	0.75	3.8	1 ph 230v 50 hz	28 mm	1”	40 mm	74 kg
FV40/15S	40 l/min	6.0 bar	1.1	5.2	1 ph 230v 50 hz	28 mm	1”	40 mm	76 kg
FV80/15S	60 l/min	4.5 bar	1.1	5.4	1 ph 230v 50 hz	28 mm	1”	40 mm	78 kg
FV80/20S	60 l/min	5.8 bar	1.5	6.1	1 ph 230v 50 hz	28 mm	1”	40 mm	80 kg





Delivery

All our Aquamaxx Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

• Product Code: DPT
• Colour: White
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1000mm
• Material: MDPE
• Shape: Upright
• Twin or Single: Single
• WRAS: WRAS Approved Parts
