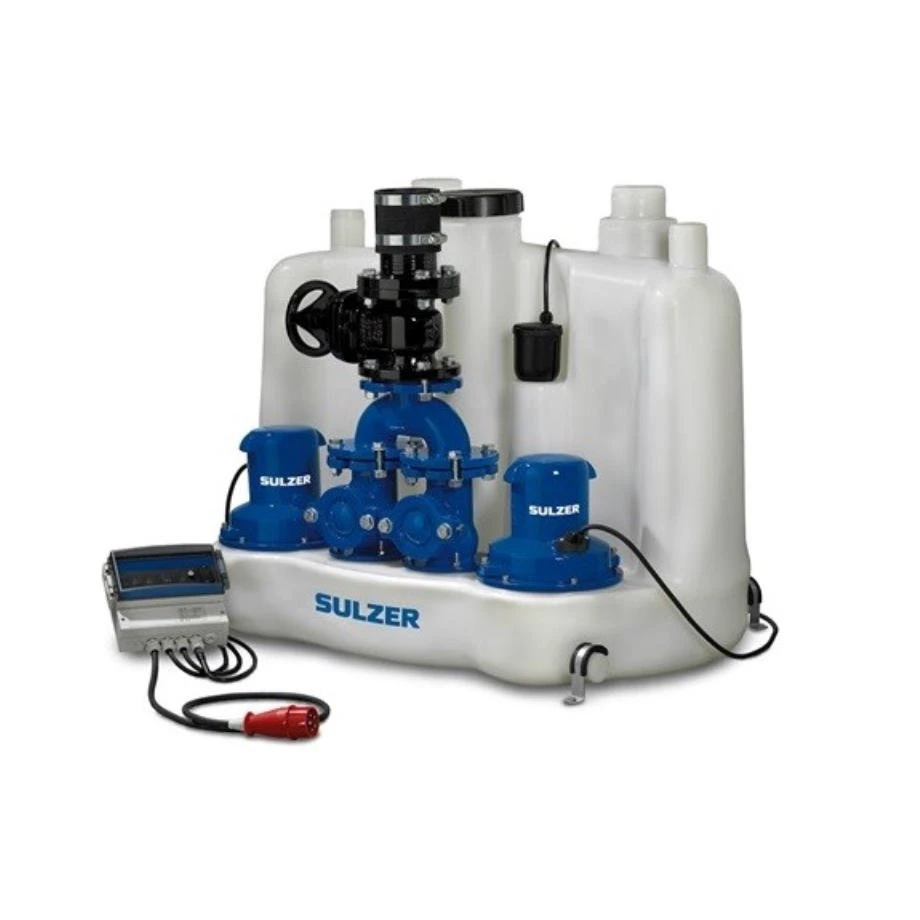

ABS Sulzer Sanimat 2002D-XD-D01*4-X

ABS Sulzer Sanimat 2002D-XD-D01*4-X



Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences, large buildings or commercial developments. Suitable for new

installations or for renovation of old buildings.



Features



• Plug-in unit with CEE plug and phase sequence changeover facility.
• Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
• Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm.
• Trouble-free maintenance thanks to simple removal of the motor housing.
• Vortex impeller with large free passage, for reliable pumping of both faecal and faecal-free sewage.
• Option of 2- or 4-pole motors.
• Direct toilet connection possible in the case of wall-mounted WC units.
• One variable inlet (DN 150) with 90° Elbow, two horizontal (DN 150), and five vertical (2 x DN 100 / 150, 2 x DN 70, 1 x DN 40). One DN 70 port is needed as a vent line.
• DN 40 port is suitable for the connection of a hand membrane pump.
• Discharge flange DN 80, plus flanged socket with 4″ sleeve and clips (for discharge pipe DN 80 / 100).
• Integrated valve system consisting of two ball-type, non-return valves.
• Sloping container floor prevents deposits.
• Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery.
• Maximum allowable temperature of medium is 40 °C, or up to 60 °C intermittent (max. 5 minutes).

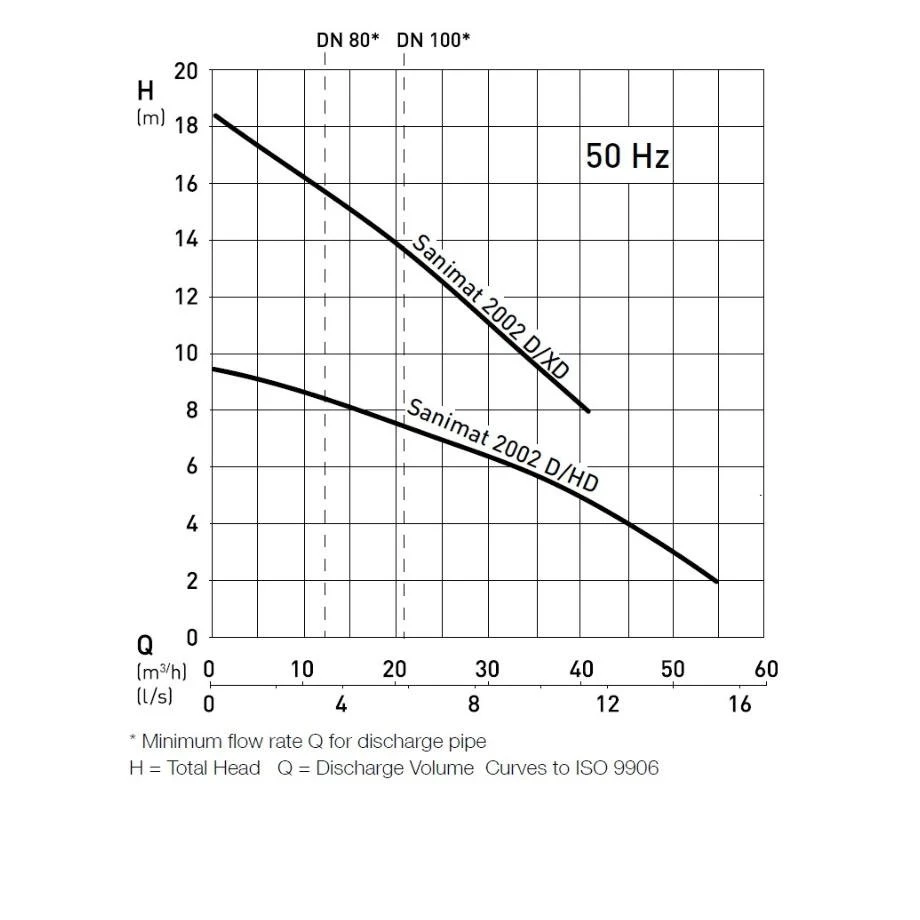

Sanimat	2002 D/H	2002 D/XD
Discharge connection	Sleeve 4″ DN 100	Sleeve 4″ DN 100
Motor power [kW]*	P1 = 2.88 P2 = 2.20	P1 = 3.70 P2 = 3.00
Speed [r/min]	1450	2 900
Rated voltage [V]	400 3~	400 3~
Rated Current [A]	5.2	6.2
Cable length [m]**	4 + 1.5	4 + 1.5
Weight [Kg]	132	132



Delivery

All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

• Product Code: DPT
• Tank Use: Sewage
