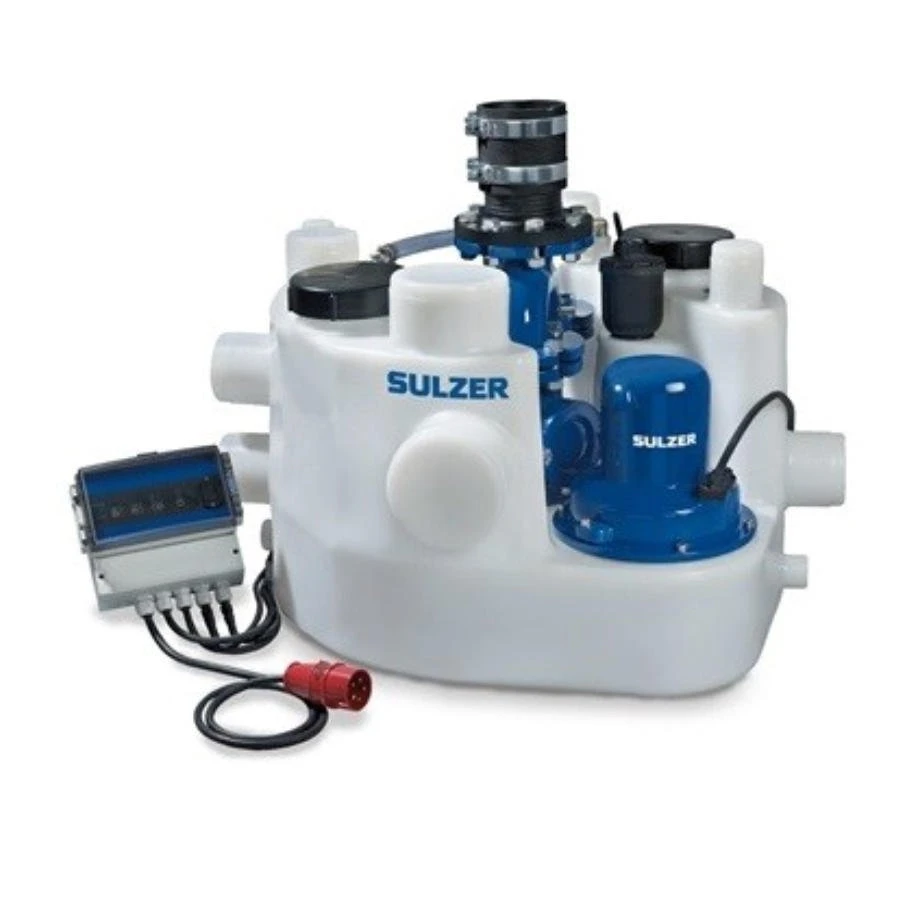

ABS Sulzer Sanimat 1002-D01*4-X

ABS Sulzer Sanimat 1002-D01*4-X

Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.

Features

• Plug-in unit with CEE plug and phase sequence changeover facility.
• Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
• Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm.
• Trouble-free maintenance thanks to simple removal of the motor housing.
• Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70.
• Two small diameter ports (DN 40/50) suitable only for wastewater.
• DN 40 is suitable for connection of a hand membrane pump.
• Discharge flange DN 80, plus flanged socket with 4″ sleeve and clips (for discharge pipe DN 80/100).
• Direct toilet connection possible in the case of wall-mounted WC units.
• Integrated valve system consisting of two ball-type, non-return valves.
• Two pumps; very quiet thanks to 4-pole, slow-running motors.
• Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage.
• Sloping container floor prevents deposits.
• Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery.
• Maximum allowable temperature of medium is 40 °C, or up to 60 °C intermittent (max. 5 minutes).
