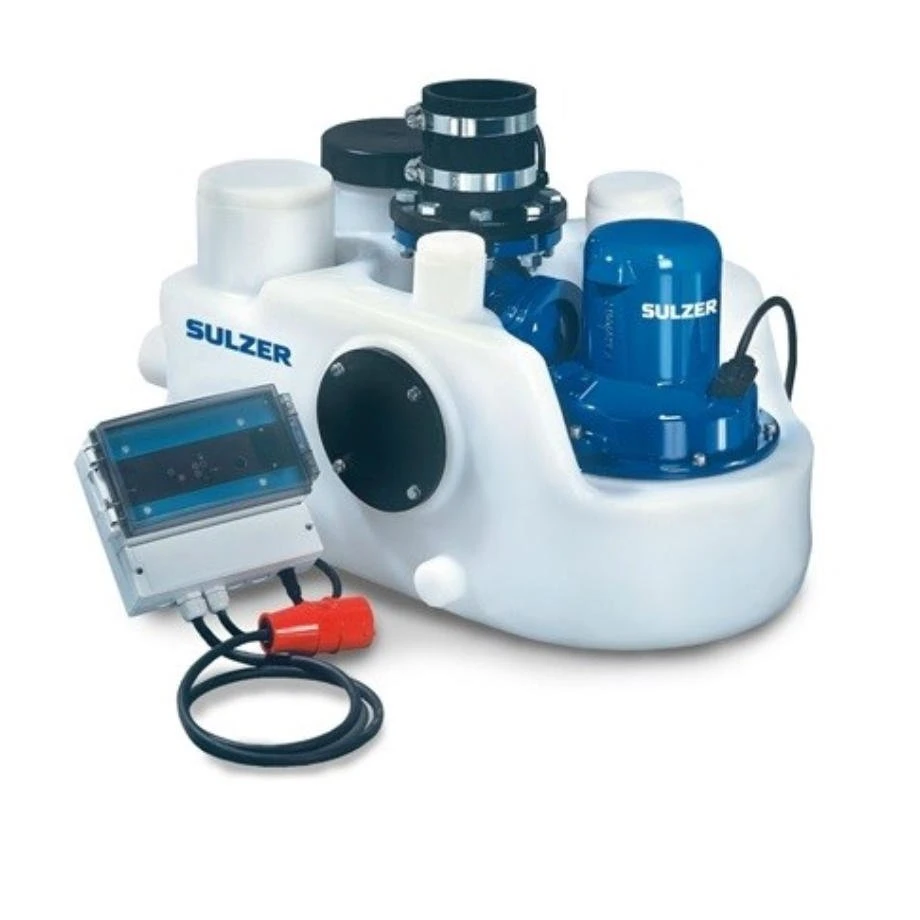

ABS Sulzer Sanimat 1000-HD-D01*4-X

ABS Sulzer Sanimat 1000-HD-D01*4-X

Flood-proof, single lifting station, for the removal of wastewater and sewage from areas below the sewer level in accordance with EN 12050-1. Ideal for effective dewatering of houses with one or

Two living units and for new buildings or renovations

Features

• Plug-in unit with earthed plug (230 V) or CEE plug (400 V) and phase sequence changeover facility.
• Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
• Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm.
• Trouble-free maintenance thanks to simple removal of the motor housing.
• Four horizontal inlet ports (2 x DN 100, 2 x DN 70) and two vertical (1 x DN 100, 1 x DN 150). Vertical vent line DN 70. DN 40 port is suitable for the connection of a hand membrane pump.
• DN 100 horizontal inlet ports are at different levels (180 and 220 mm) allowing for flexible installation connection.
• Direct toilet connection possible in the case of wall-mounted WC units.
• Discharge flange DN 80, plus flanged socket with 4″ sleeve and clips (for discharge pipe DN 80/100).
• Integrated valve system consisting of ball-type, non-return valve.
• Very quiet running thanks to 4-pole, slow-running motor.
• Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage.
• Sloping container floor prevents deposits.
• Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery.
• Maximum allowable temperature of medium 40 °C, or up to 60 °C
• intermittent (max. 5 minutes).



Delivery

All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

• Product Code: DPT
• Tank Use: Sewage
