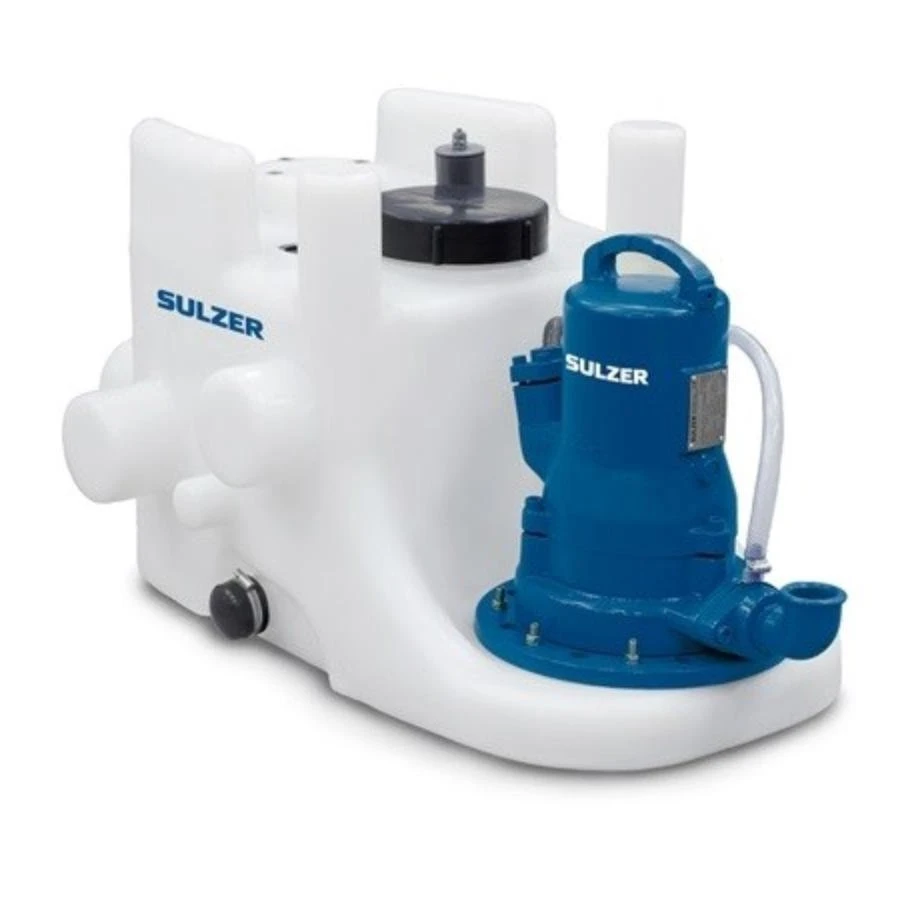

ABS Sulzer Piranhamat 1002-D01*4-X

ABS Sulzer Piranhamat 1002-D01*4-X

Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. The Piranhamat 1002 is used for reliable and economical discharge of wastewater under pressure using small diameter discharge lines. Suitable for new installations or for renovation of old buildings.

 Features

• Ready for installation; robust, compact tank, for buildings containing a number of dwellings and for small industry.
• Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
• Fitted with Piranha submersible grinder pump for problem-free pumping of sewage and wastewater containing faecal matter in pipelines from 1¼’ diameter (DN 32).
• Five horizontal inlet ports (1 x DN 150, 4 x DN 100) and six vertical (1 x DN 150, 2 x DN 100, 1 x DN 70, 1 x DN 50, 1 x DN 40).
• DN 40 is suitable for the connection of a hand membrane pump.
• Pumps high head up to 30 m. Most suitable for applications with minimum head of 8 m.
• Cast iron discharge outlet with threaded flange G 1¼’.
• Shredding system consisting of a spiral bottom plate containing a stationary cutter ring with cutting edges and a shredding rotor located below the impeller, reduces the medium for optimum blockage-free running.
• Shaft sealing between motor and hydraulic section by means of a single mechanical seal of silicon carbide, independent of direction of rotation, resistant to temperature shock and to dry running. Motor side: lip seal, oil lubricated.
• Motor shaft is mounted in lubricated-for-life, maintenance-free ball bearings.
• Maximum allowable temperature of medium is 40 ºC, or up to
• 60 ºC intermittent for a maximum of five minutes.

Piranhamat	1002 D
Motor power [kW]*	P1 = 2.3 P2 = 1.7
Speed [r/min]	2900
Rated voltage [V]	490 s~
Rated current [A]	4.0
Cable type [S1BN8-F]	4G1.5
Cable length [m]**	4m
Weight [Kg]	98

Description Size Part no.

* P1 = Power taken from mains.

P2 = Power at motor shaft.

** Control unit fitted with 1.5 m cable and plug.



Delivery

All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.



• Product Code: DPT
• Tank Use: Sewage
