800 Litre POLY Above Ground Water Pumping Station

800 Litres POLY Above ground Single Water Pump station

The complete kit for collection of water. This system is delivered to site as a complete package, including all the internal pipework and the drainage pump. Designed for easy installation, in mind.

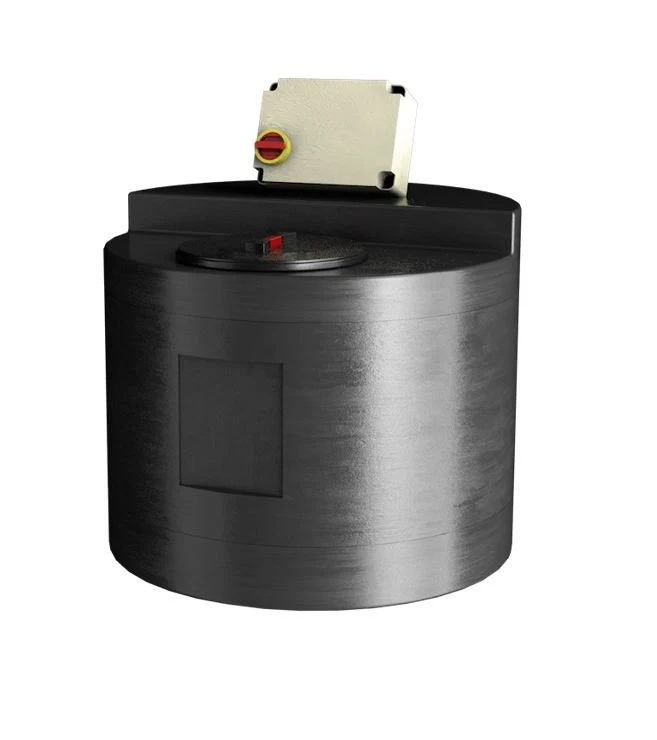

A small, compact water pumping station, suitable for residential, commercial, industrial and office/professional spaces.

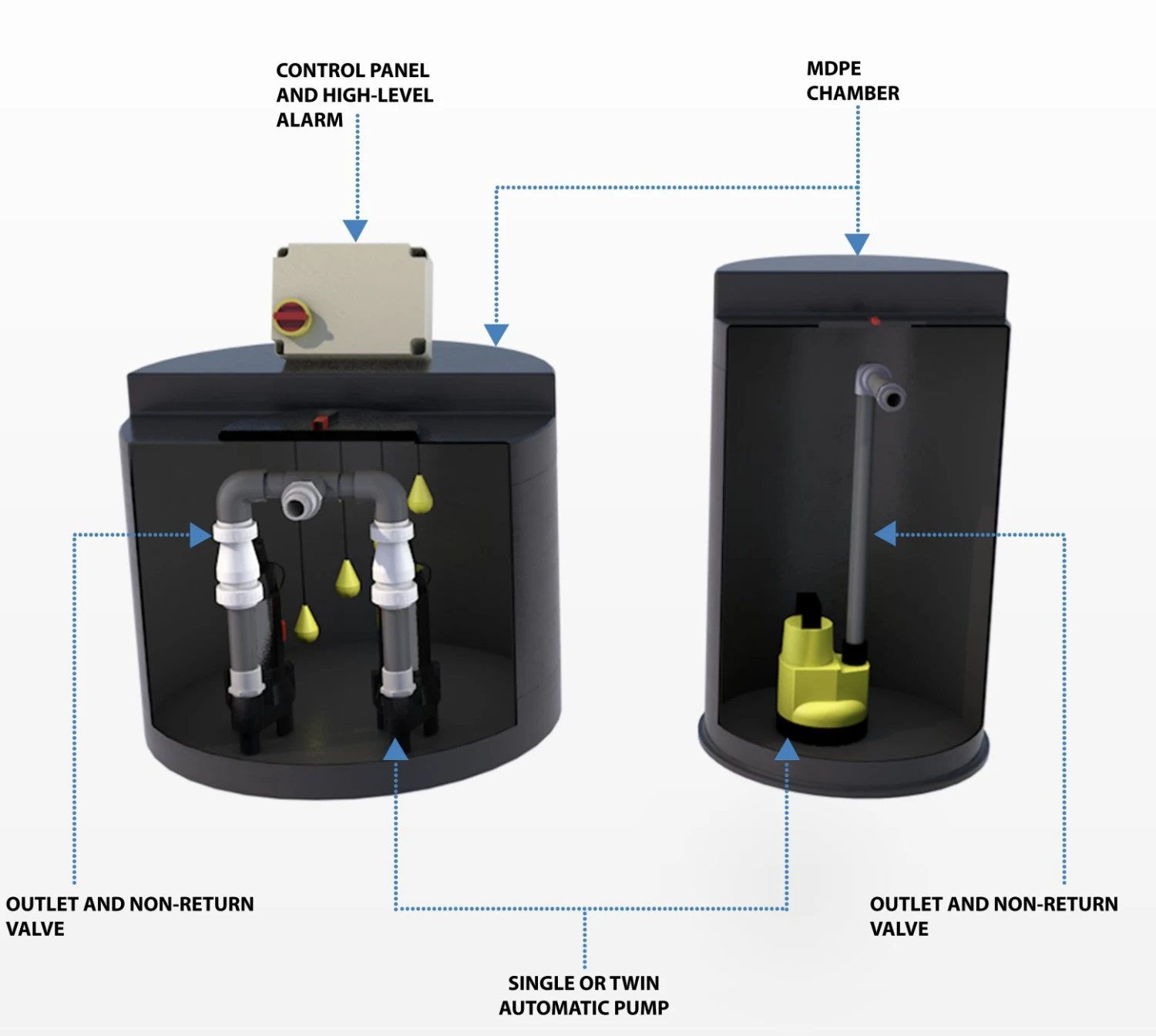

Water Pumping Station includes:

• MDPE chamber
• Soft close Non-Return Valve
• Internal 1 1/4” PVC (class C) discharge pipe work kit
• Seal for incoming and outgoing pipework (4″ & 2″)
• 12 months warranty



Model	PAG800S/AQ
Capacity	800 Litres
Height	850 mm
Diameter	1000 mm
Number of Pumps	Single or Twin
Power Supply	230 – 1ph – 50hz
Rated Power	0.43kw
Rated Current	1.9A
Max Head.	6 m
Max Flow rate per Pump	2.75 l/s
Cable length	10 m
Max Particle Size	10 mm

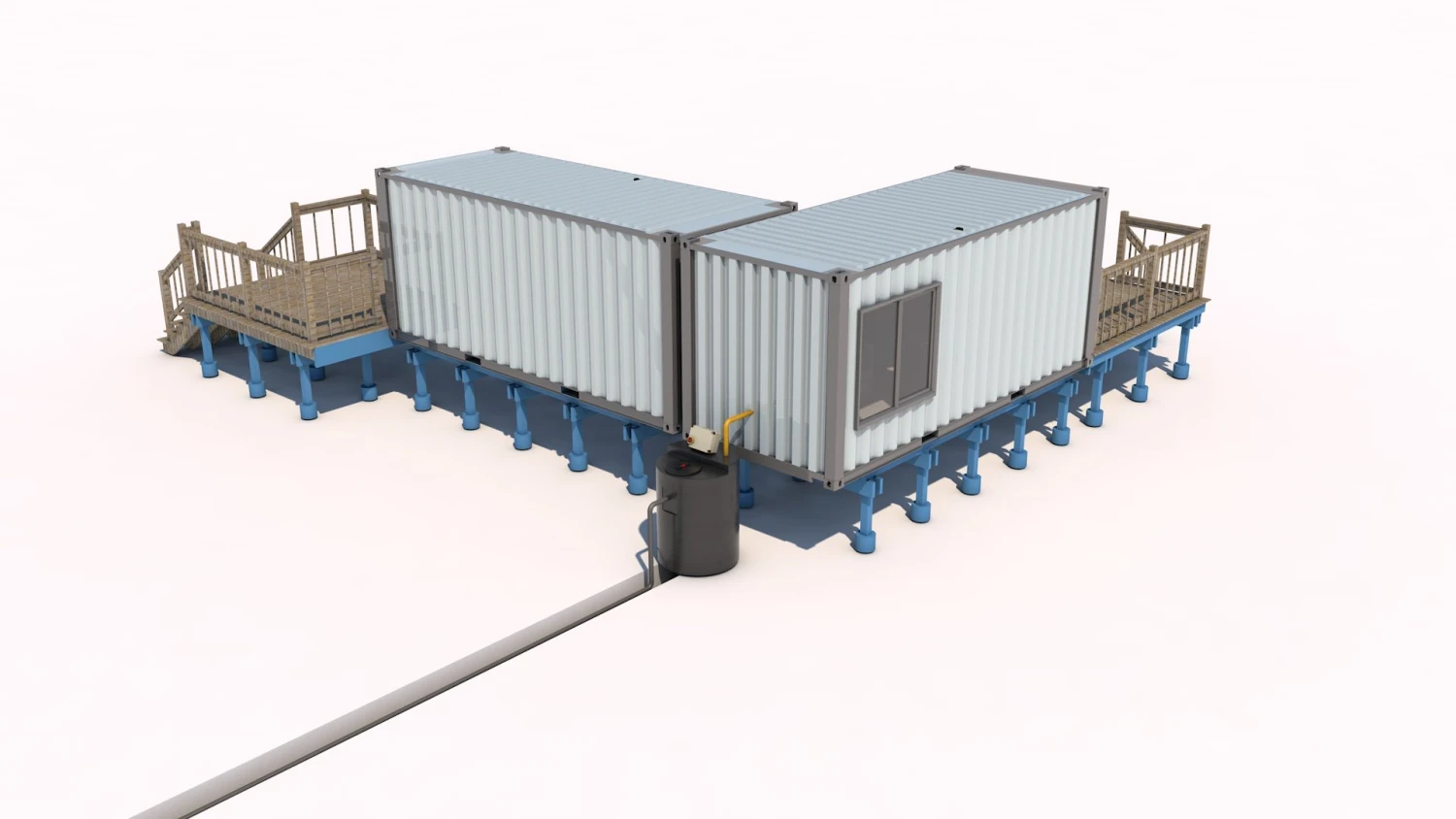

As the system is being installed above ground, you will need to check the levels to ensure you can achieve a gravity fall into the chamber.



Delivery

All our Above ground units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.







• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: MDPE
• Tank Use: Above Ground
• Twin or Single: Single
