800 Litre Basement Sump Pump System, 6m Lift

800 Litre Basement Sump Pump System, 6m Lift – EF Micro 800

Suitable for Removing Grey Water From:  Final Effluent from Sewage Treatment Plants, Drainage of Cellars & Basements, Sinks, Showers, Kitchens & Dishwashers. A packaged pump station is used when gravity drainage on site cannot be achieved. The Micro Effluent is suited for clean, dirty or slightly polluted water. This unit has been designed to pump water from a septic tank or treatment plant. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The system comes in four different depths, 635, 1000, 1500 and 2000mm.  The units are available from stock All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings.  A high water alarm is available if required. The Micro Effluent Pumping Station comes with a submersible pump with 10mm solid handling for peace of mind

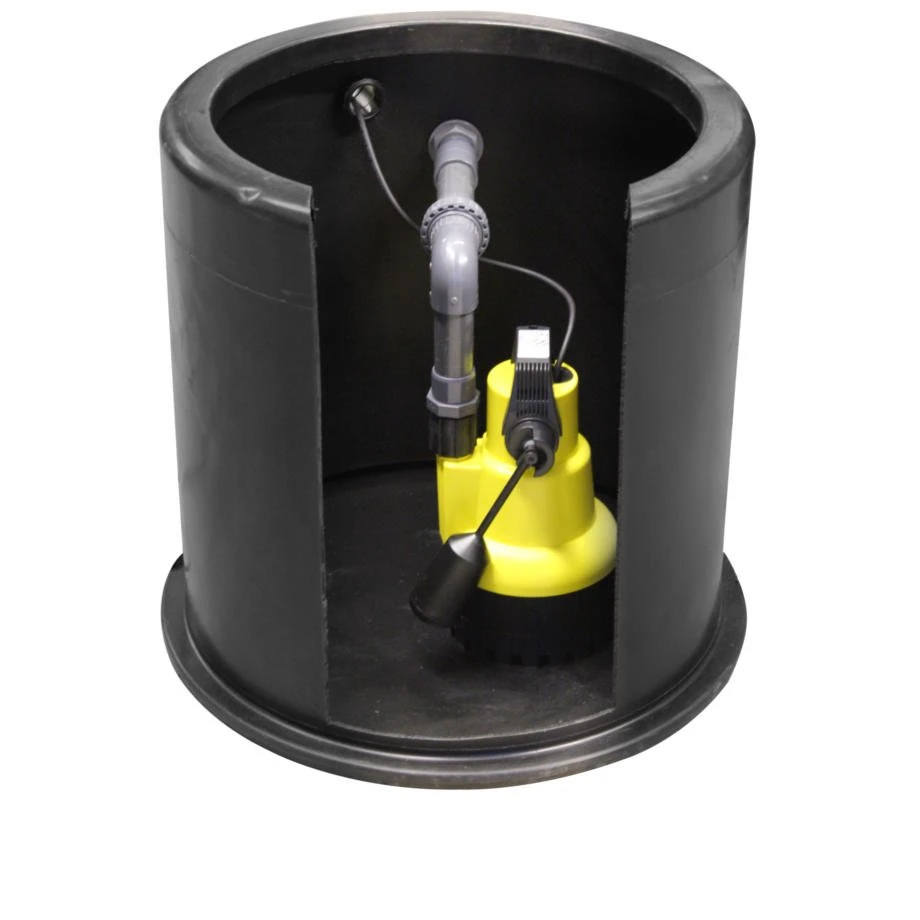

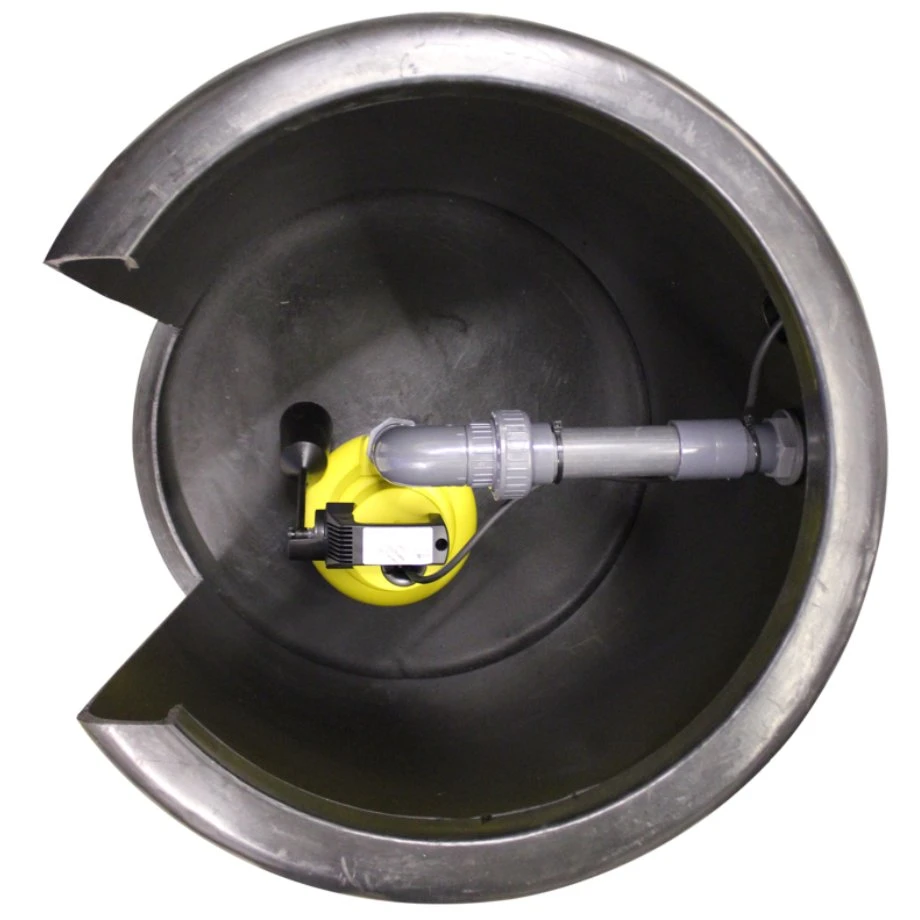

Pump:

• Polypropylene Plastic
• 10mm (1 ¼”) solids handling capacity
• Coolant filled motor.
• Mechanical seal.
• 10 Meter cable.
• Max 6 Meter lift.
• Max flow 5 L/sec
• Float switch as standard.

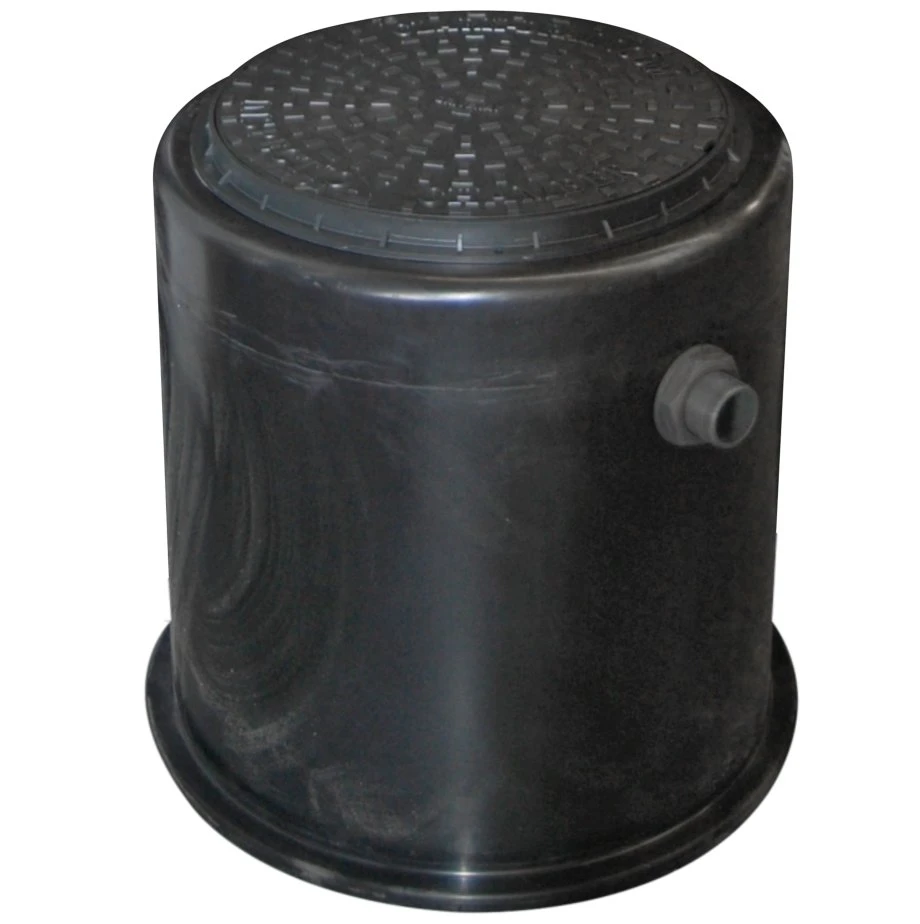

Tank:

• Polyethylene tank.
• 190L, 300L, 450L and 600L capacity.
• Screw down lid (Pedestrian rated)
• 1 x 110 mm/160 mm inlet seal to allow inlet to be drilled on site.
• 40 mm cable duct.
• 1 ¼” internal pipe work
• 1 ¼” non-return valve
• 1 ¼” quick release coupling
• 1 ¼” cable duct

Special audible / visual high level alarm control box available.



Delivery

All our Basement Pump Systems are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Customer Offloading: Customer Offloading
