300 Litre Sewage Pumping Station

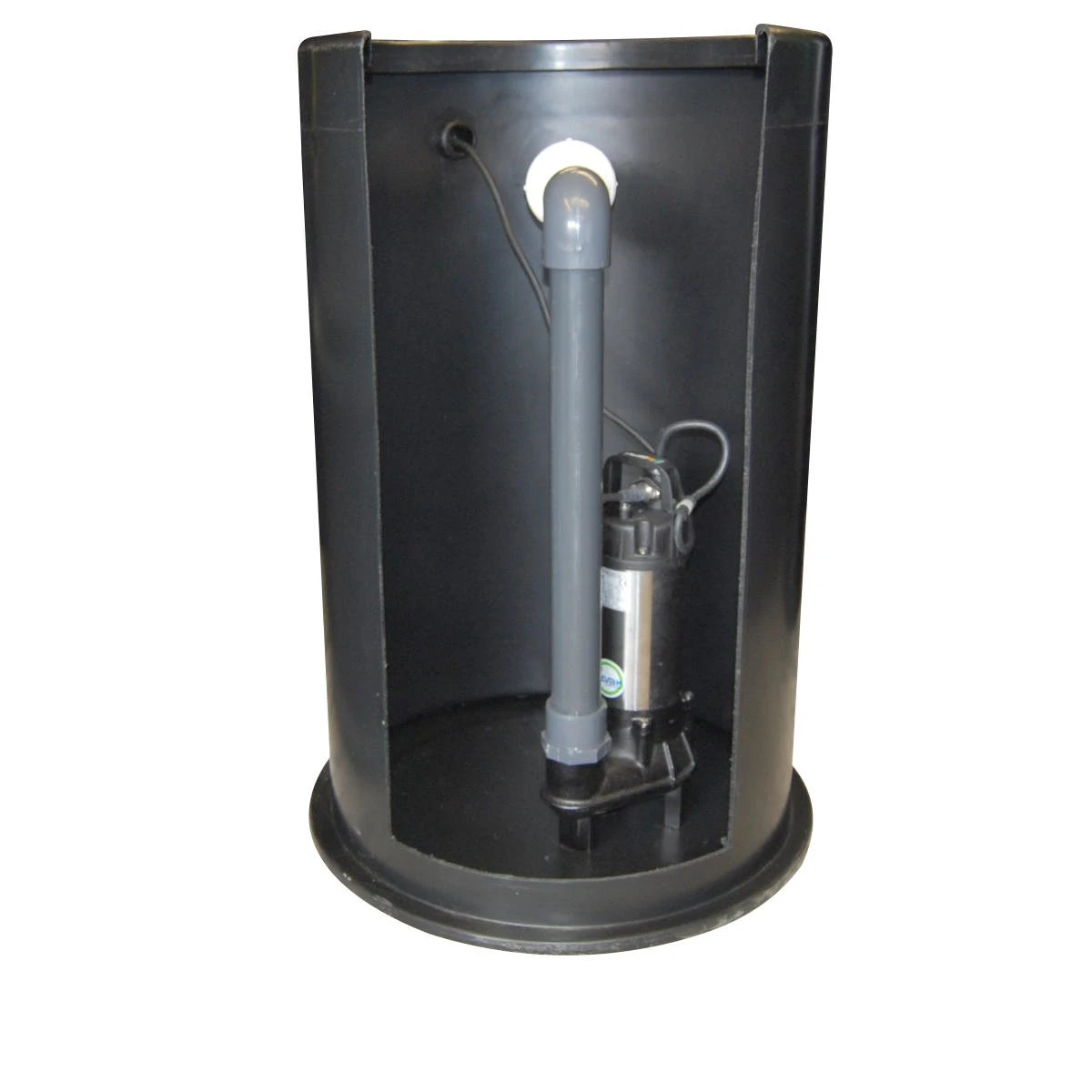

Micro 300 Litre Sewage Pumping Station

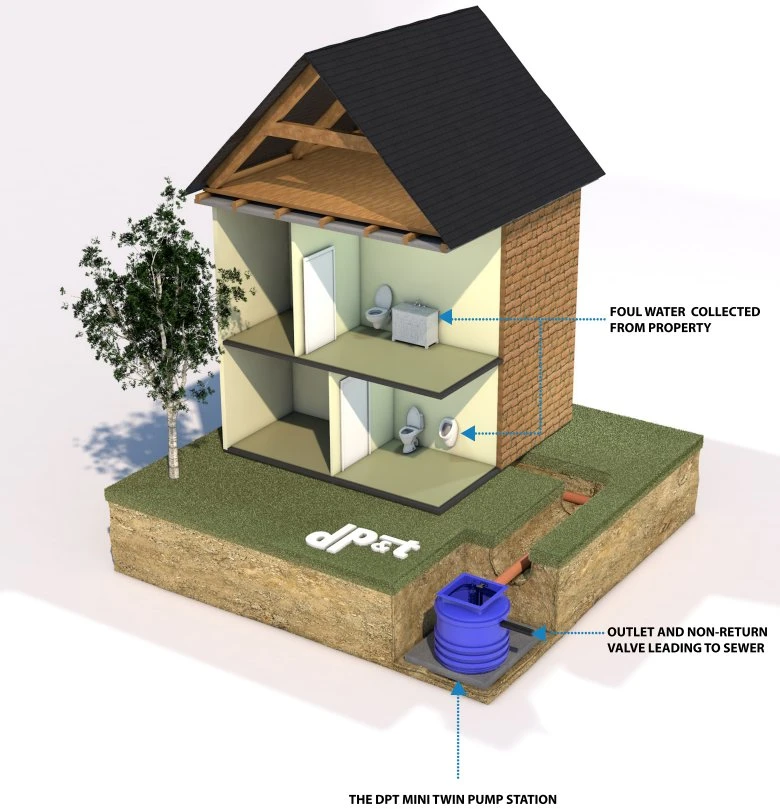

A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The FS Micro 300 Litre Pumping Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, the mini system can also used for the transfer of sewage or waste water, designed for easy installation.

FS Micro 300 Litre is a small sewage pump station also suitable for extensions, garden rooms and small applications. Particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system. All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings. There is also available a high water alarm if required. The FS Micro 300 Litre Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind

Pump:

• Cast iron/stainless steel construction.
• 50 mm (2″) solids handling capacity
• Coolant filled motor.
• Mechanical seal.
• 10 Meter cable.
• Max 6 Meter lift.
• Max flow 5 L/sec
• Float switch as standard

Tank:

• Polyethylene tank.
• 300L capacity.
• Screw down lid (Pedestrian rated)
• 1 x 110 mm / 160 mm inlet seal to allow inlet to be drilled on site.
• 40 mm cable duct.
• 2″ internal pipe work
• 2″ non-return valve
• 2″ quick release coupling
• 2″ cable duct
• Special audible/visual high level alarm control box available



Delivery

All our Sewage pump stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Colour: Black
• Delivery: Fast Delivery
• Diameter: 610mm
• Material: Polyethylene
• Shape: Round
• Stock tank: Stock tank
• Tank Use: Below Ground, Sewage
• Twin or Single: Single
