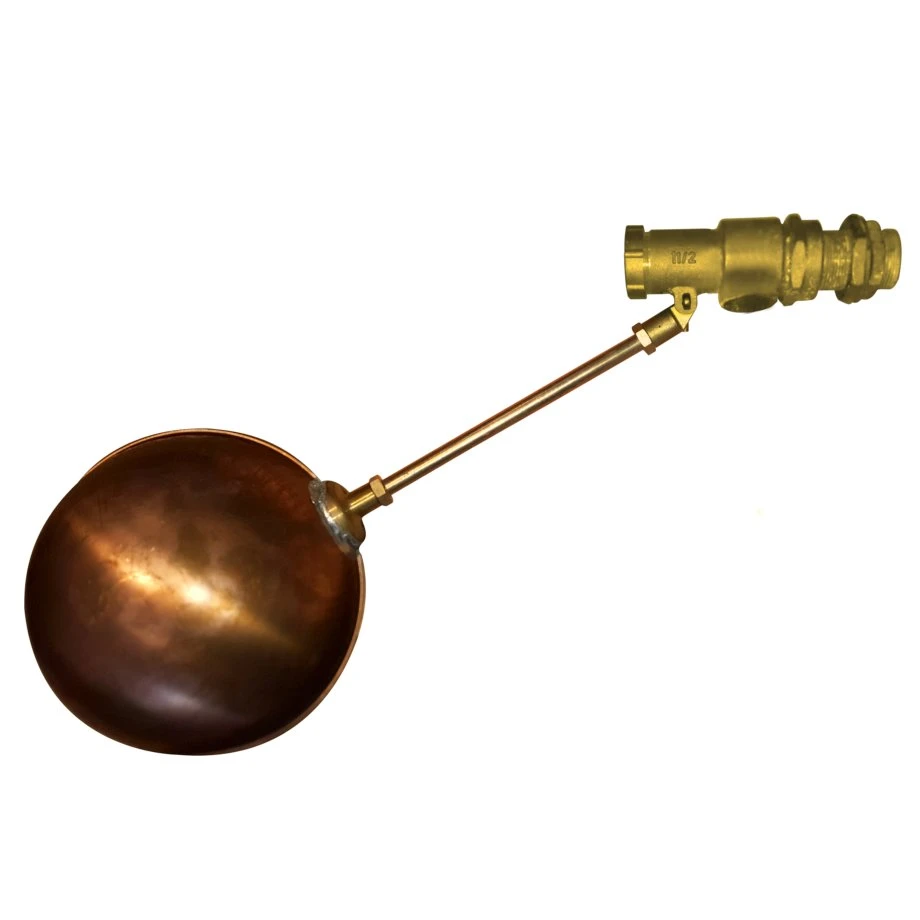

3/4′ Equilibrium Straight Arm Float Valve With Float

3/4′ Equilibrium Straight Arm Float Valve with float Description

Float Valve – Equilibrium Straight Arm 3/4″ c/w float

Std valve with float to suit fitting into the tank body to provide conventional air gap arrangement (AG or AF). Equilibrium Float Valve

A range of quality high flow rate Float Valves which are simple and robust and can reliably self compensate for changes in water supply pressures. One size of seat and one size of ball float will suit any working pressure up to the maximum recommendation of 5bar Even at these pressures the seat combined with the hydraulically balanced closing action gives fast, quiet and smooth shut-off.

Valves are available in 1/2″ to 4″ sizes with BSP male threaded inlet stub.

These valves are available in two ranges:

– Std valve with float to suit fitting into the tank body to provide conventional air gap arrangement (AG or AF).

– Std valve with the addition of a brass threaded drop arm to allow the valve to be fitted into a raised float valve housing c/w spill over weir slot, to provide an AB or AA air gap to suit systems where catagory 5 water is present.



All Equilibrium float valves are supplied with a high quality copper float.

Materials

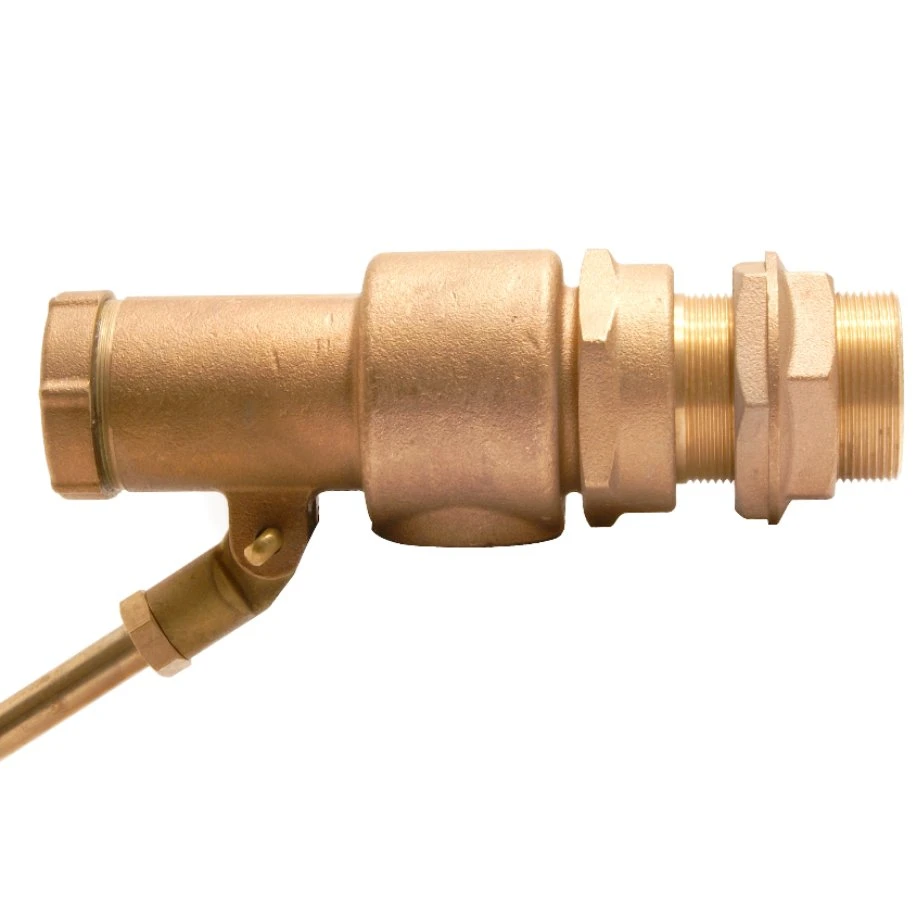

• Body: Gunmetal
• Lever arm: DZR Brass
• Lever arm claw: Gunmetal

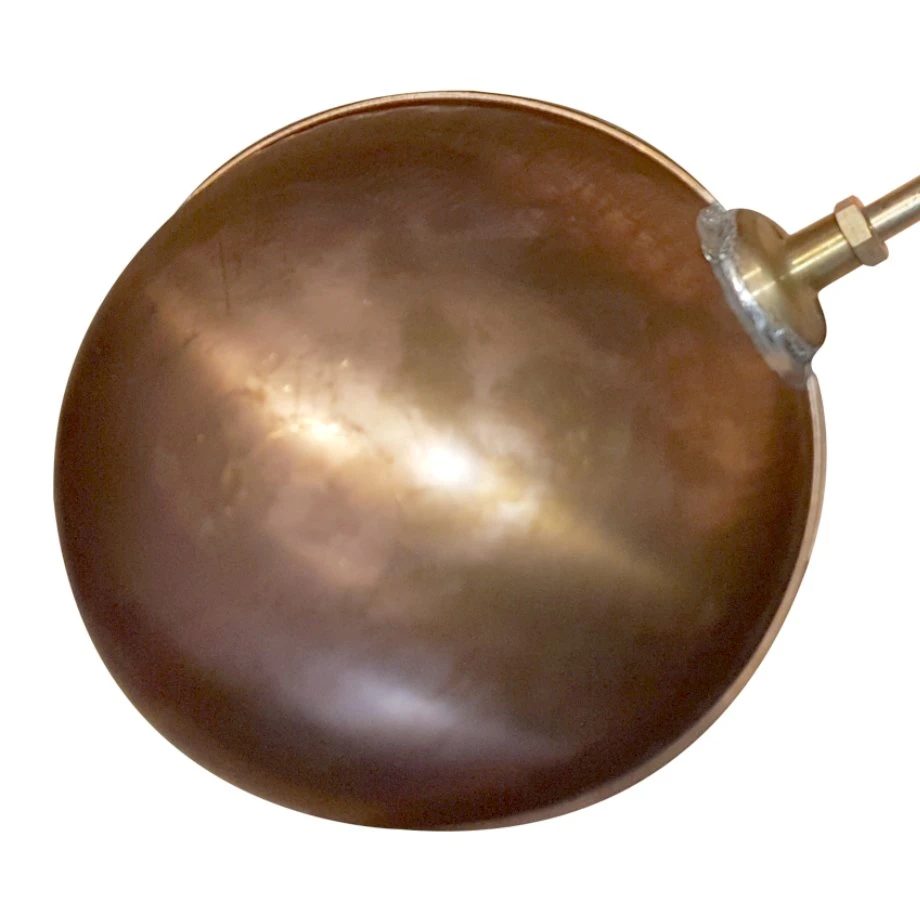

• Ball Float: Copper
• Back nut: Plastic, Brass or Gunmetal
• Benefits- Available in full bore configurations to suit pressures up to 5 bar (75psi) whilst still maintaining a fast, quiet and smooth shut off action.
• Available with male BSP threaded connections to suit most connection situations.
• The body of the valve is made from corrosion immune Gunmetal giving years of trouble free service



• Product Code: PW
• Outlet Size: 3/4″ BSP Male
• Stock tank: Non Returnable Product
