2′ Triple Variable Speed Vertical Booster Pump Set Mid Curve Duty 255l/min @ 11bar D/A/A

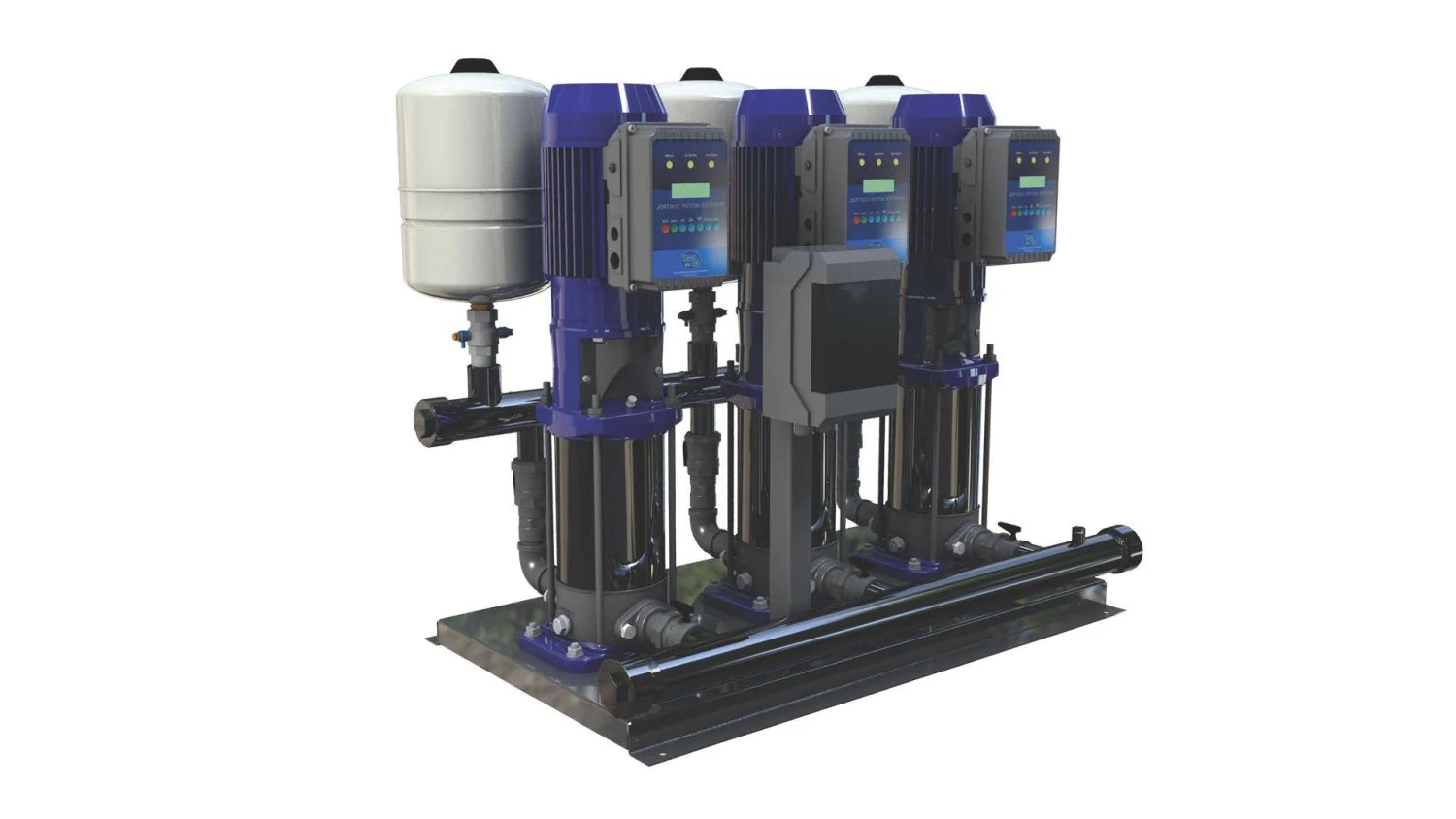

TANKS DIRECT RS VARI 2″ Triple Variable Speed Vertical Booster Pump Set Mid curve duty 255l/min @ 11bar



The Tanks Direct twin pump constant pressure cold water booster set, is designed to increase the pressure of water services within a building where the existing incoming main is not sufficient. If the supply of water fails during operation the pumps automatically shuts down to prevent damage and re-starts again once water is restored. The pressure boosters are suitable for private water supply applications, particularly where constant pressure is required or where there are large fluctuations in demand.

 Vertical multistage pumps are used during instances where you need large flows and pressures generating and the saving space with the design of a vertical mounted motor. Additionally, the motor is easier to access and allows for efficient, routine maintenance as with horizontal multistage systems everything is on floor level and would need rotating to change any mechanical seals throughout its lifetime, this will be more labour intensive and in applications where routine servicing is required due to the heavy demand of the application where potentially, 100’s of people rely on the supply of water and cannot afford unexcepted downtime vertically mounted motors are the preferred choice for engineers and consultants alike.

Pre-fitted pressure vessel ensures smooth running and reduces the run time of the pump for longer lifespan. Can be used for potable water applications, as WRAS approved pump and high-quality fittings.

Each pump operates within a 60-65dB noise rating at max speed, data recorded from 1 m distance to a ± 2.5dB.



2″ Triple Variable Speed Vertical Booster Pump Set Mid curve duty 255l/min @ 11bar

KEY BENEFITS

• 304 Stainless steel WRAS approved pumps
• BMS Volt Free Contacts
• Variable speed inverter
• Dry run protection
• PWB 8 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge
• Tested and programmed prior dispatch
• Stainless-steel Fittings
• Available in twin and triple set options



Delivery

All our booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

Option: Stainless-steel inlet & outlet flexible connector, (recommended over rigid pipe when installing tank away from booster set)
Tanks Direct also supply variable domestic & commercial single and triple pumps, please contact us on 01643 703358.

Please note that the 255l/min @ 11bar is when both pumps are working together. Pumps come as Duty Assist as standard, so the mid-curve for each pump would be 128l/min @ 11bar



• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Shape: Vertical
• Tank Use: Made to Order
• Twin or Single: Twin
• WRAS: WRAS Approved Parts
