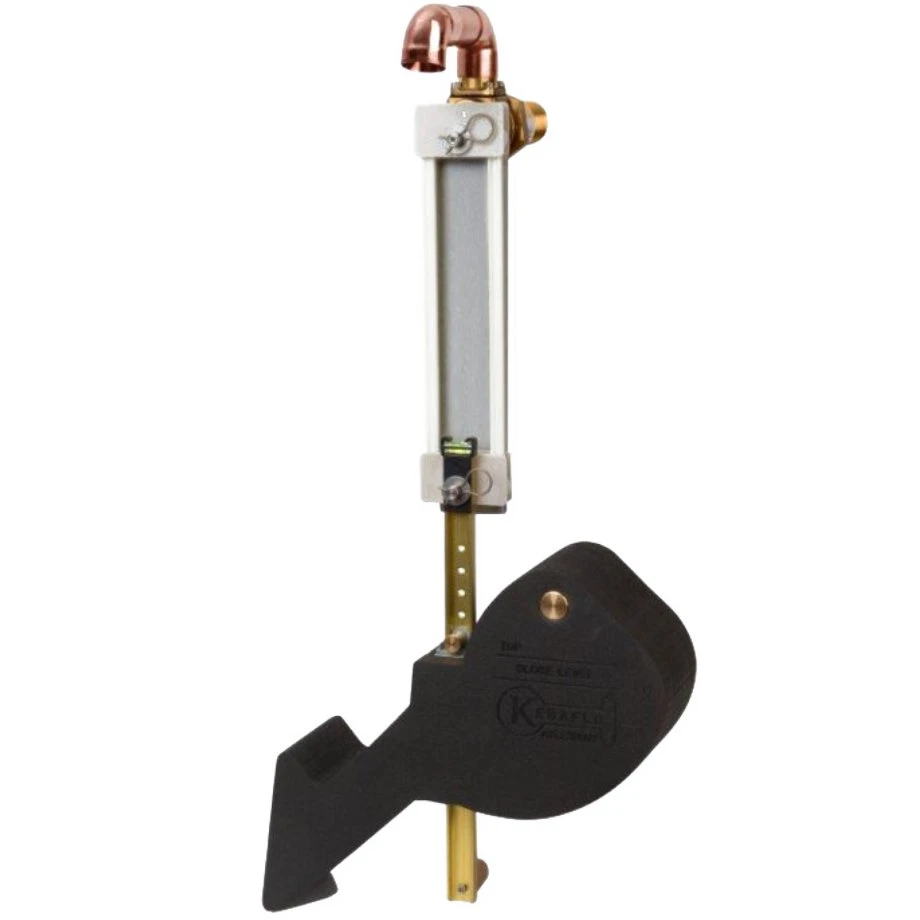

2′ Aylesbury Keraflo KAX Type SF, Delayed Action Float Valve, 50mm

2′ Aylesbury Keraflo KAX Type SF, Delayed Action Float Valve, 50mm Description

Aylesbury Keraflo KAX Type Standard Flow 2″ (50mm) Delayed Action Float Valve

Reduces Legionnaire risk

Saves energy with positive pump control

No valve bounce

Maximises tank capacity

No dribble

No water hammer

Full flow during fill

Aylesbury ‘KAX’ Type – For Use In Raised Float Valve Chambers

Delayed Action Float Valve

Non adjustable opening / closing operating differential approximately 75mm

Primarily for tanks with raised valve chambers

Identical in operation to the ”K’ Type, the Aylesbury ‘KAX’ Type Valves have extended drops

and are suitable for raised valve chambers.

They are primarily designed to fit into chambers or boxes in the covers of

tanks calling for Air Gaps or where maximum tank capacity is required.

To assist with compliance of Air Gap requirements the valve discharge is further raised above

the centre line.

The ‘KAX’ is especially suitable for Type AA and AB Air Gaps.

• Product Code: PW
• Delivery: Fast Delivery
• Outlet Size: 2″ BSP Male
• Stock tank: Non Returnable Product
