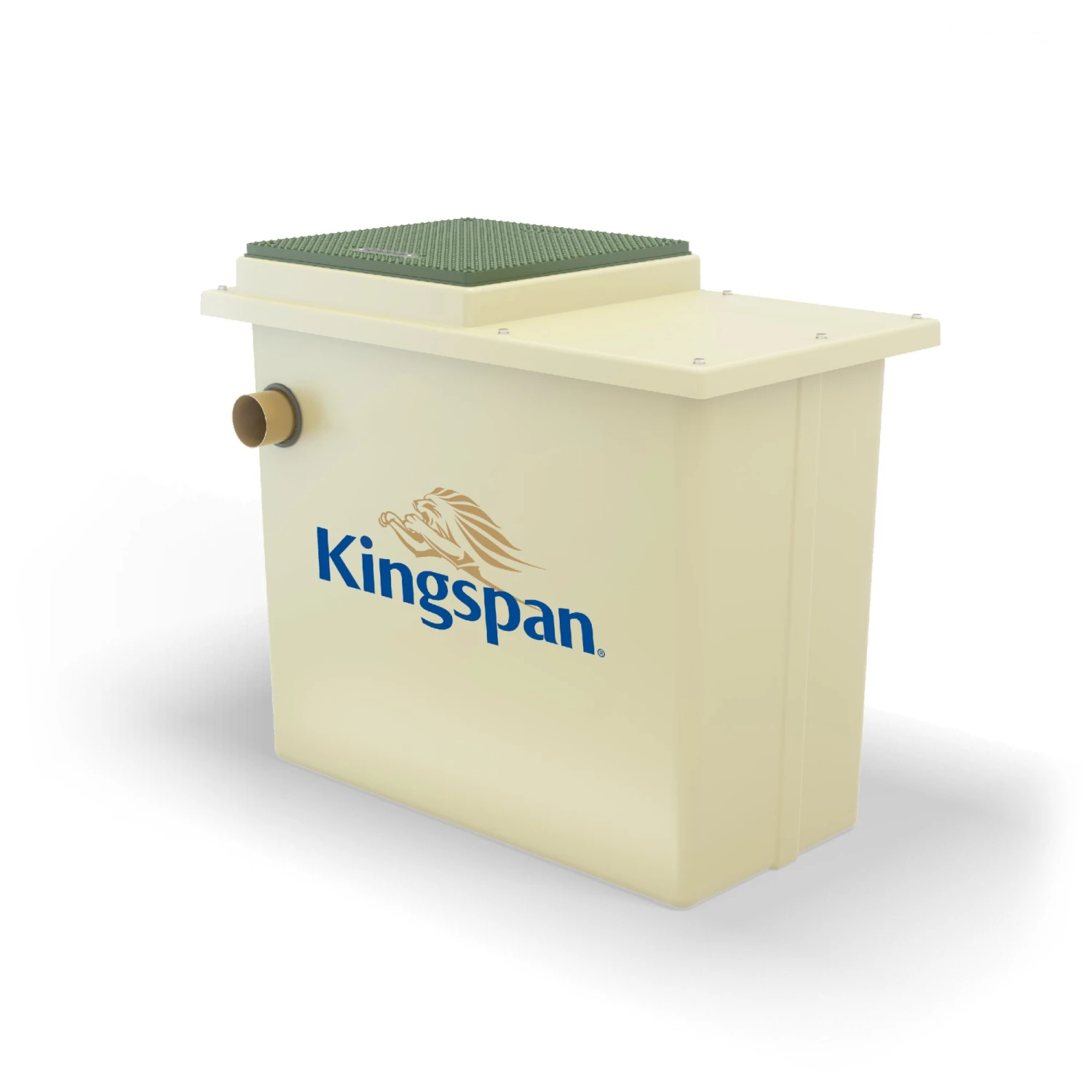

1000 Litre – Klargester Grease Separator NSG02

Klargester Grease Separator – NSG02 – 1000 litre capacity

Klargester Grease Separators are an effective and hygienic method of separating fat and grease from wastewater flow.

Grease Separators are designed for catering applications and suitable for use in:

• Restaurants
• Hotels
• Public houses
• Canteens

Key Features

• Range capacities from 500 – 11000 litres and flow rates of 1 – 24 litres/sec.
• Greatly reduces drain blockages.
• Improves performance of septic tanks and field drains
• Prevents contamination of small sewage treatment plants.
• Protects mains drainage system from grease blockages.

Technical Specification

Separator Model	Flow rate (l/s)	Tank length (mm)	Capacity (L)	Shipping Height (mm)	Fall Across The Unit (mm)
NSG02	2	1620	1000	1175	75



How it works

Grease separators allow fats and grease to naturally separate out from water, allowing their removal prior to the wastewater reaching the drainage system. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.

Grease Range Sizing Table

Meals Per Day	Standard Meals	Fast Food	Fine Cuisine
40	NSG01	NSG01	NSG02
60	NSG02	NSG02	NSG02
80	NSG02	NSG02	NSG04
100	NSG02	NSG04	NSG04
200	NSG04	NSG06	NSG09
300	NSG06	NSG09	NSG14
500	NSG09	NSG14	NSG18
700	NSG14	NSG18	NSG24
900	NSG18	NSG24	–
1,300	NSG24	–	–



The optional GA-1 Grease Monitor Alarm measures the thickness of grease buildup within the separator.

Really easy to install, has remote monitoring features, supports all kind of grease separators.

Product contains a GA-1 Control Unit-GA-SG1 Sensor-Cable Joint

Complying: EN 1825 & DIN 4040 norms



• Product Code: KLA
• Delivery: Free Delivery
• HIAB Available: HIAB Available
• Material: GRP
• Tank Use: Below Ground
