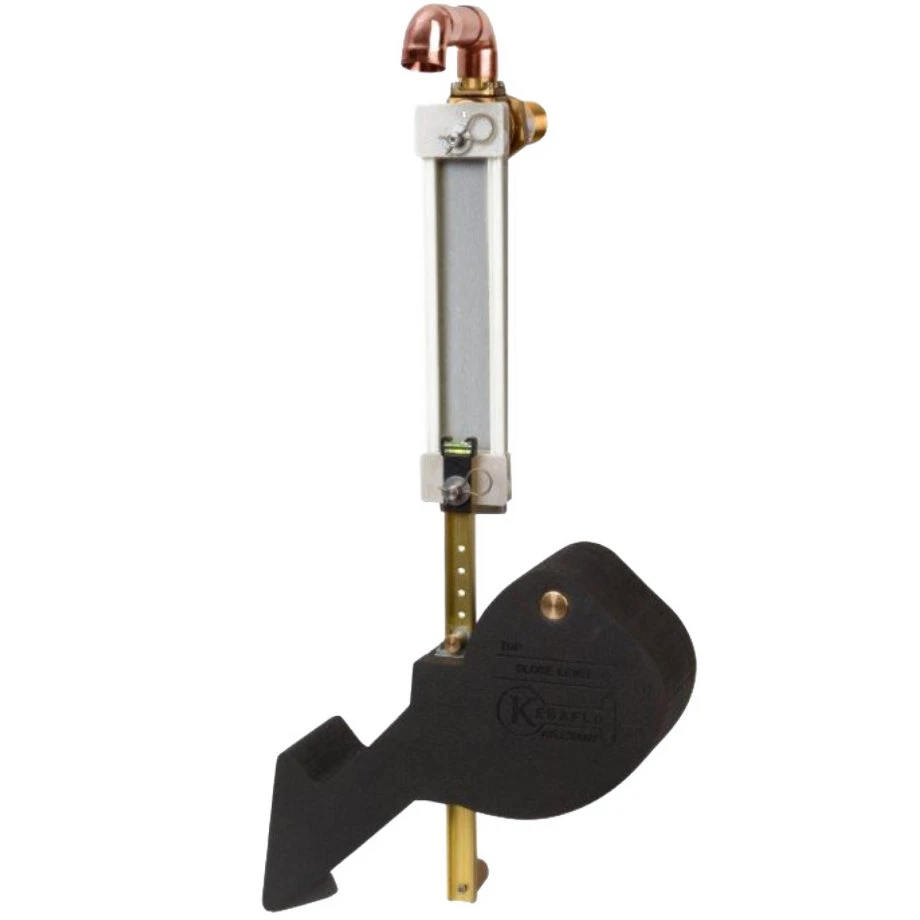

1′ Aylesbury Keraflo KAX Type SF, Delayed Action Float Valve, 25mm

1′ Aylesbury Keraflo KAX Type SF, Delayed Action Float Valve, 25mm Description

Aylesbury Keraflo KAX Type Standard Flow 1″ (25mm) Delayed Action Float Valve

Benefits of Keraflo”s Aylesbury Float Valve Range:

• Maintenance Free
• Designed to operate for long periods without maintenance.
• Backsiphonage Protection
• ‘Up and Over discharge’ to BS1212 part 2
• helps to facilitate Air Gap compliance.
• Extended Durability
• Non-wearing ceramic disc seal in a DZR brass housing
• Virtually Indestructible
• The heart of the valve incorporates pressure compensated rotating ceramic discs which are aligned in the open position.
• Revolutionary Shaped
• Puncture Proof Float, made from Polyethylene closed cell foam which is CFC free air retardant and chemically and biologically inert.
• This radical design virtually eliminates stress on the tank wall fixing point.



• Water Pressure: Suitable for 0 -10 Bar.
• Temperature Range: 1 – 60 C.
• Ideal for pumped systems
• Reduces Legionnaire risk
• Saves energy with positive pump control
• No valve bounce
• Maximises tank capacity
• No dribble
• No water hammer
• Full flow during fill

Aylesbury ‘KAX’ Type – For Use In Raised Float Valve Chambers

• Delayed Action Float Valve
• Non adjustable opening / closing operating differential approximately 75mm
• Primarily for tanks with raised valve chambers
• Identical in operation to the ”K’ Type, the Aylesbury ‘KAX’ Type Valves have extended drops
• and are suitable for raised valve chambers.
• They are primarily designed to fit into chambers or boxes in the covers of
• tanks calling for Air Gaps or where maximum tank capacity is required.
• To assist with compliance of Air Gap requirements the valve discharge is further raised above
• the centre line.
• The ‘KAX’ is especially suitable for Type AA and AB Air Gaps.

• Product Code: PW
• Delivery: Fast Delivery
• Outlet Size: 1″ BSP Male
• Stock tank: Non Returnable Product
