1 1/4′ Aylesbury Keraflo K Type SF, Delayed Action Float Valve, 32mm

1 1/4′ Aylesbury Keraflo K Type SF, Delayed Action Float Valve, 32mm Description

Aylesbury Keraflo K Type Standard Flow 1 1/4′ (32mm) Delayed Action Float Valve

Benefits of Keraflo”s Aylesbury Float Valve Range:

• Maintenance Free
• Designed to operate for long periods without maintenance.
• Backsiphonage Protection
• ‘Up and Over discharge’ to BS1212 part 2
• helps to facilitate Air Gap compliance.
• Extended Durability
• Non-wearing ceramic disc seal in a DZR brass housing
• Virtually Indestructible
• The heart of the valve incorporates pressure compensated rotating ceramic discs which are aligned in the open position.
• Revolutionary Shaped
• Puncture Proof Float, made from Polyethylene closed cell foam which is CFC free air retardant and chemically and biologically inert.
• This radical design virtually eliminates stress on the tank wall fixing point.



• Water Pressure: Suitable for 0 -10 Bar.
• Temperature Range: 1 – 60 C.
• Ideal for pumped systems
• Reduces Legionnaire risk
• Saves energy with positive pump control
• No valve bounce
• Maximises tank capacity
• No dribble
• No water hammer
• Full flow during fill

Aylesbury ”K’ Type

• Delayed Action Float Valve
• Non adjustable opening / closing operating differential approximately 75mm
• Suitable for tanks without raised valve chambers

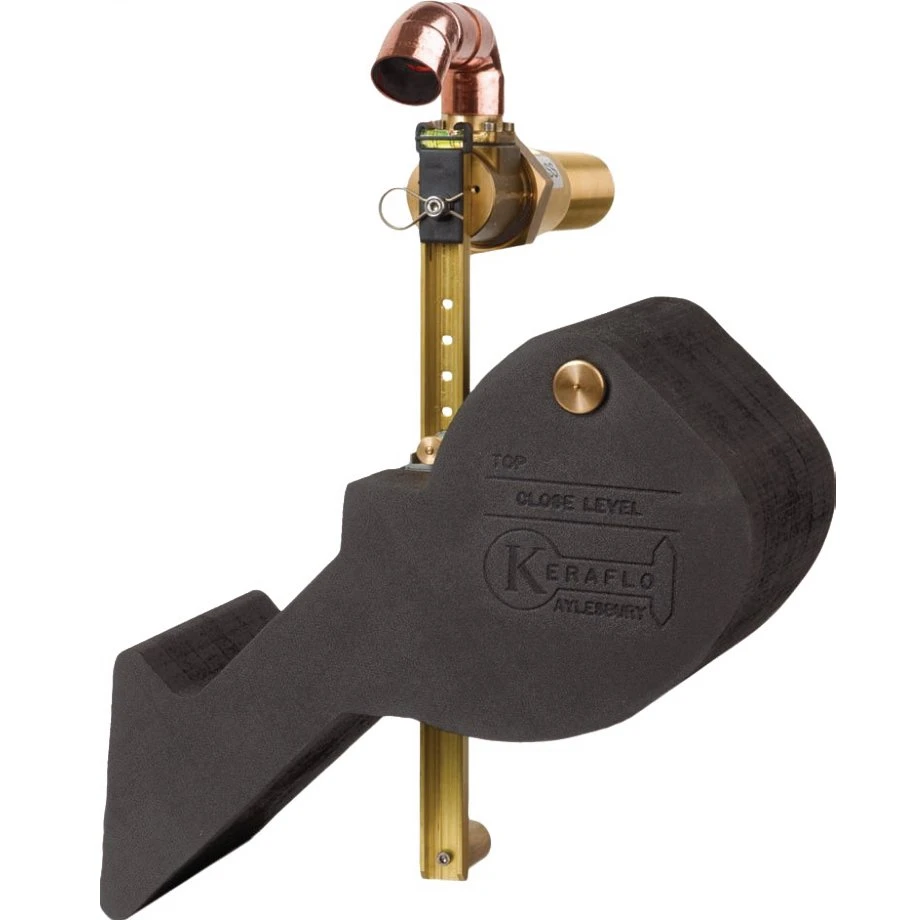

The weighted key-shaped float which is supplied with Aylesbury ”K’ Type float valves can be accurately set in a number of positions on the brass float arm, actuating the valve at a predetermined difference in water level, driving it fully open or fully closed without water hammer. This positive action avoids dribble, reduces noise and allows full flow until the selected closed level is reached. Inherent in the design is a non-adjustable operating differential in water level between opening and closing of approximately 75mm. Also available in stainless steel for use in demanding environments such as desalination plants and sea water.

• Product Code: PW
• Delivery: Fast Delivery
• Outlet Size: 1 1/4″ BSP Male
• Stock tank: Non Returnable Product
